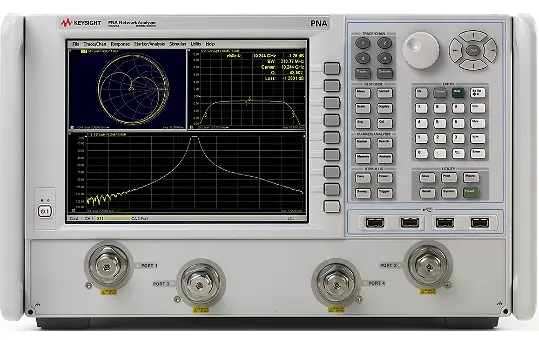

Keysight N5242AS PNA-X Microwave Network Analyzer
Request a quote
Keysight N5242AS PNA-X microwave network analyzer covers 10 MHz to 26.5 GHz with 2-4 ports and integrated dual sources for testing active RF and microwave devices.
Product details
| Model | N5242AS |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5242AS is a variant of the PNA-X series microwave network analyzers, representing the world's most integrated and flexible single-connection test engine for measuring active RF and microwave devices including amplifiers, mixers, and frequency converters. The N5242AS covers 10 MHz to 26.5 GHz and features 2 or 4-port configurations with dual built-in signal sources and advanced internal signal-routing capabilities.
Key Features
- Frequency range: 10 MHz to 26.5 GHz
- 2 or 4 ports with two built-in sources
- 126 dB system dynamic range and 129 dB receiver dynamic range
- Up to 32,001 measurement points with 200 channels and 15 MHz IF bandwidth
- High output power (+18 dBm) with low harmonics (-60 dBc)
- Wide power sweep range of 38 dB
- 0.1 dB compression dynamic accuracy with +15 dBm input power at receiver
- Low noise floor of -111 dBm at 10 Hz IF bandwidth
Applications
- S-parameter measurements (CW and pulsed)
- Noise figure characterization
- Gain compression analysis
- Intermodulation and harmonic distortion testing
- Conversion gain/loss measurements
- True-differential stimulus characterization
- Millimeter-wave device testing
- Nonlinear waveform and X-parameter characterization
- Antenna testing
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | 2.4mm-Male (Jack) |
| Form Factor | Benchtop |
