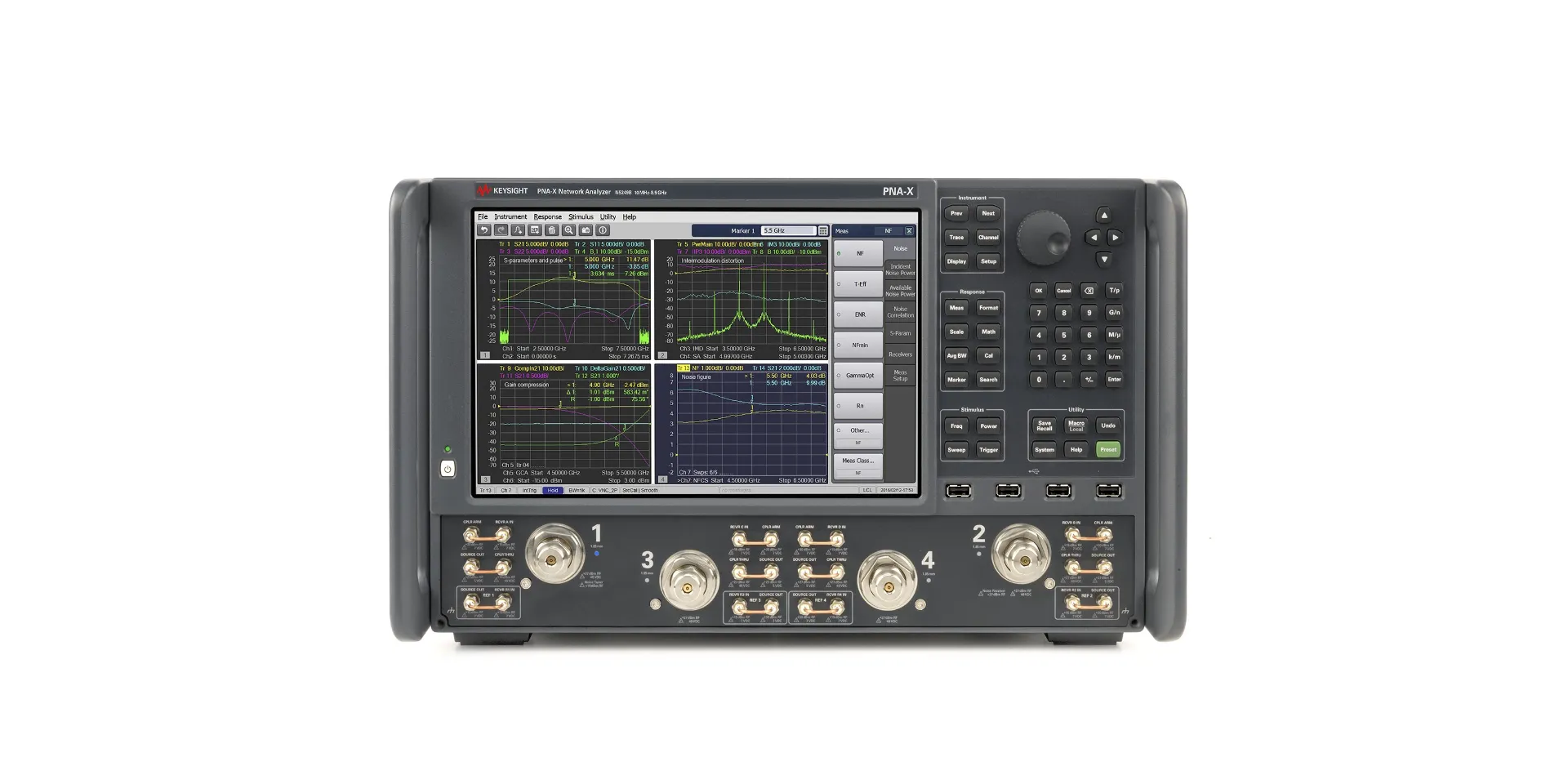

Keysight N5241B PNA-X Network Analyzer
Request a quote
Keysight N5241B PNA-X combines two built-in sources, signal combiner, and multiple receivers in a single test engine for active device characterization up to 13.5 GHz.
Product details
| Model | N5241B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5241B PNA-X is the industry's most integrated and flexible single-connection microwave test engine for measuring active RF devices. It combines two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators, and internal RF switches in a single platform, eliminating the need for external test equipment and reducing test system complexity.
Key Features
- 10 MHz to 13.5 GHz frequency range with 2 or 4 port configurations
- Two internal signal sources with integrated signal combiner
- Built-in S-parameter and noise measurement receivers
- Pulse modulators and RF access points for flexible stimulus control
- Single connection to device under test for comprehensive measurements
- Multitouch display with intuitive user interface
- Replaces entire rack of separate test equipment
Applications
- Linear and nonlinear device characterization
- S-parameter measurements and device modeling
- Noise figure and gain compression analysis
- Amplifier, mixer, and frequency converter testing
- Intermodulation and harmonic distortion measurement
- Signal integrity and antenna testing
Specifications
| N5241B | 900 Hz/10 MHz to 13.5 GHz |
