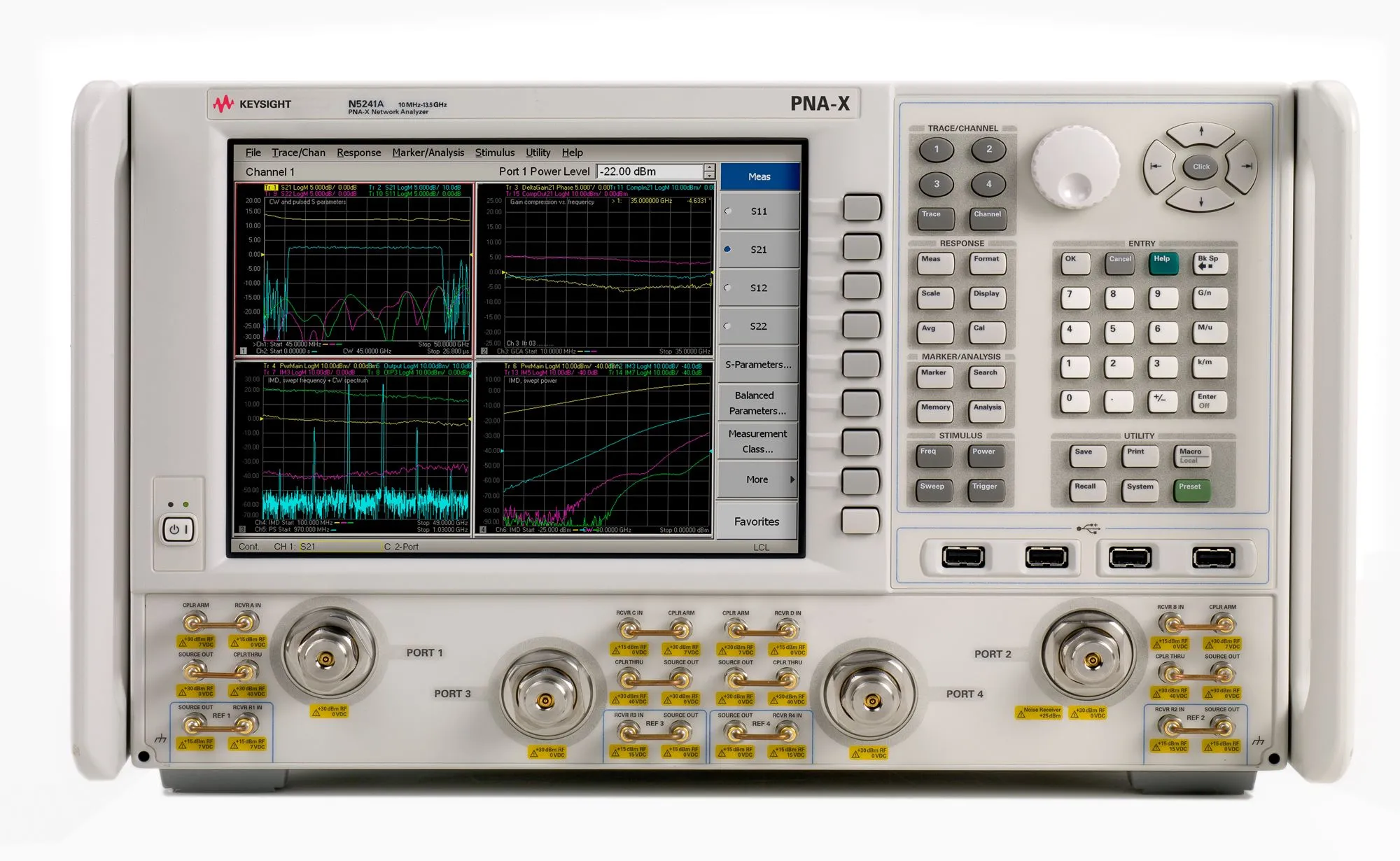

Keysight N5241AS PNA-X Network Analyzer
Request a quote
Keysight N5241AS PNA-X with high-power configuration delivers 132 dB system dynamic range, +18 dBm output power, 10 MHz to 13.5 GHz, and 0.1 dB compression accuracy.
Product details
| Model | N5241AS |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5241AS is a high-power variant of the PNA-X network analyzer, configured with extended 2-port power range (Option 285) and high-power configuration (Option H85). It delivers superior dynamic range and output power for the most demanding active device characterization applications, featuring two built-in signal sources for comprehensive stimulus capability.
Key Features
- 10 MHz to 13.5 GHz frequency range with 2 or 4 port configurations
- 132 dB system dynamic range and 130 dB receiver dynamic range
- High output power at +18 dBm with wide 38 dB power sweep range
- 32,001 measurement points, 200 channels, and 15 MHz IF bandwidth
- Best dynamic accuracy: 0.1 dB compression with +13 dBm input power at receiver
- Low noise floor of -114 dBm at 10 Hz IF bandwidth
- Low harmonics at -60 dBc
- Extended 2-port power range and high-power configuration options
Applications
- S-parameter measurements (CW and pulsed)
- Noise figure and gain compression testing
- Intermodulation and harmonic distortion characterization
- Conversion gain and loss measurement
- True-differential stimulus testing
- Nonlinear waveform and X-parameter characterization
- Millimeter-wave and antenna testing
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Form Factor | Benchtop |
