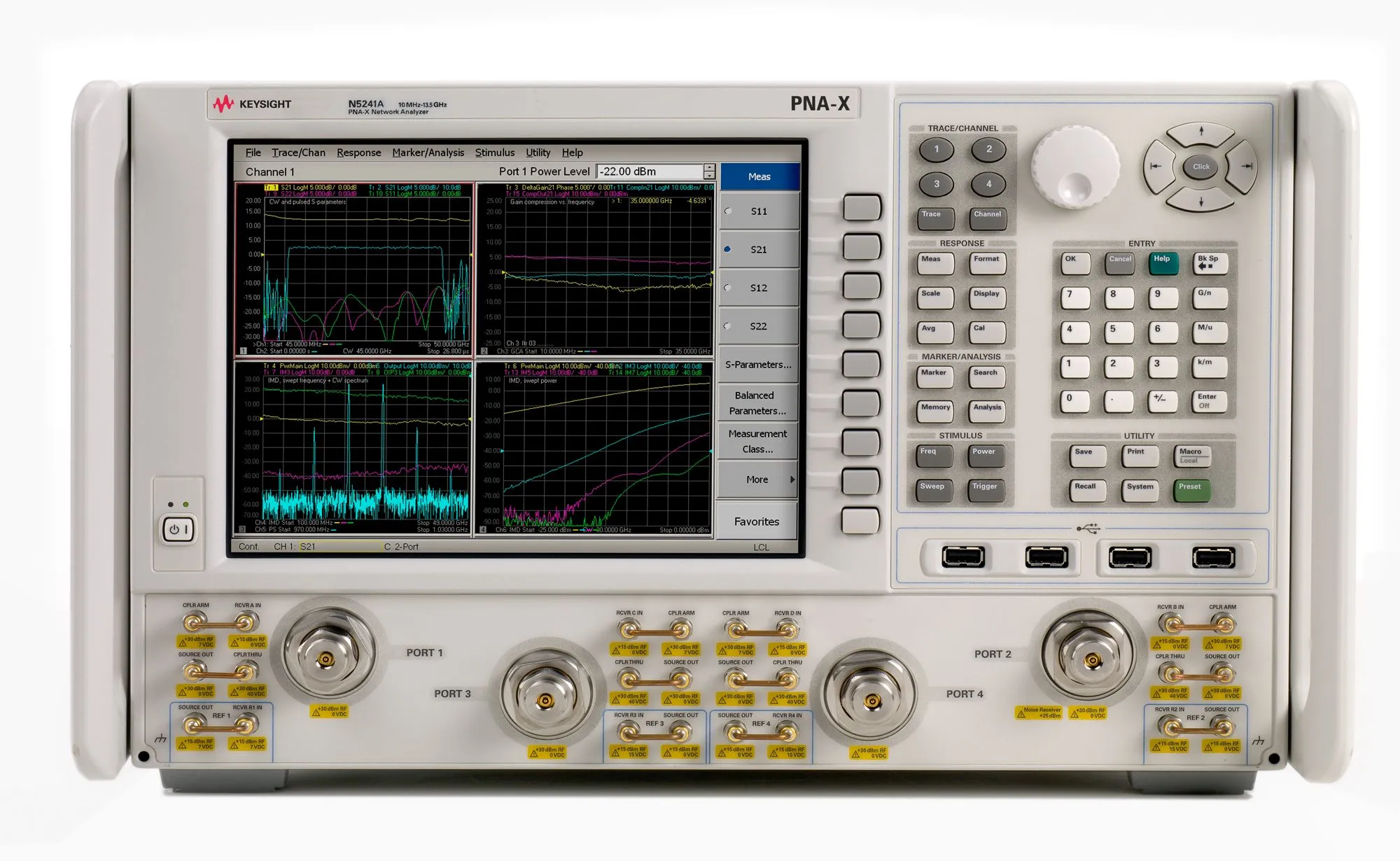

Keysight N5241A PNA-X Network Analyzer
Request a quote
Keysight N5241A PNA-X measures active RF devices up to 13.5 GHz with 127 dB dynamic range, integrated second source, signal combiner, and comprehensive single-connection testing.
Product details
| Model | N5241A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5241A PNA-X is the world's most integrated and flexible single-connection microwave test engine for measuring active RF devices such as amplifiers, mixers, and frequency converters. It combines two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators, and internal RF switches to provide comprehensive linear and nonlinear device characterization with a single connection to the device under test.
Key Features
- 10 MHz to 13.5 GHz frequency range with 2 or 4 port configurations
- 127 dB dynamic range and 13 dBm output power
- Low harmonics at -60 dBc for clean measurements
- Two internal signal sources and integrated signal combiner for complex stimulus patterns
- Comprehensive measurement receivers for S-parameters and noise figure
- Multitouch display with intuitive user interface
Applications
- S-parameter measurements (CW and pulsed)
- Noise figure characterization
- Gain compression testing
- Intermodulation and harmonic distortion analysis
- Conversion gain and loss measurement
- True-differential stimulus testing
- Nonlinear waveform and X-parameter characterization
- Antenna testing and millimeter-wave applications
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Form Factor | Benchtop |
