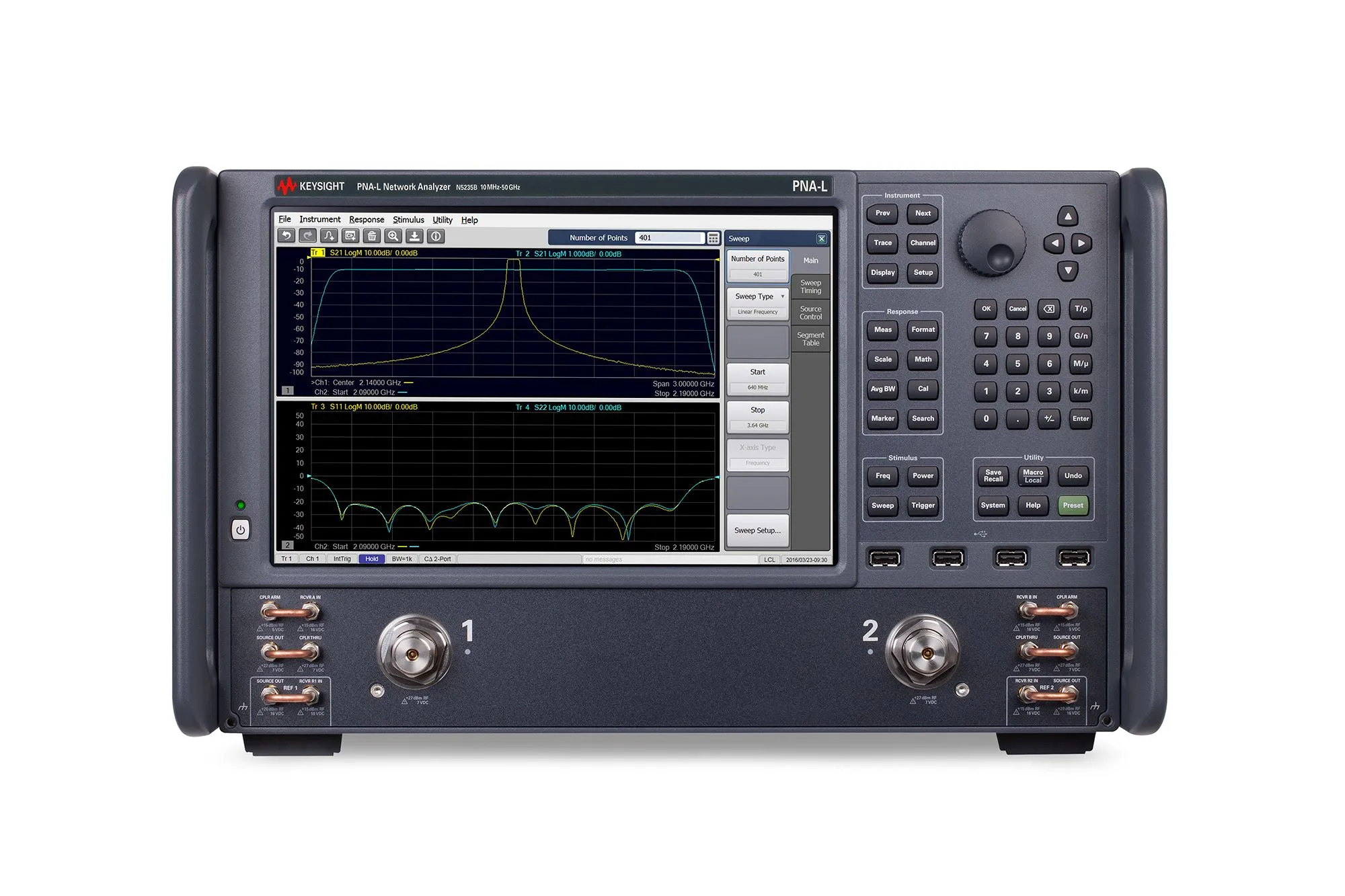

Keysight N5235B Network Analyzer
Request a quote
Keysight N5235B is a cost-effective PNA-L network analyzer covering 10 MHz to 50 GHz for precision S-parameter measurements in manufacturing and R&D.
Product details
| Model | N5235B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5235B is a PNA-L series network analyzer designed for cost-effective measurements in manufacturing and research environments. Operating from 10 MHz to 50 GHz, it provides the performance and economy required for diverse component characterization and signal integrity testing applications.
Key Features
- Frequency range: 10 MHz to 50 GHz
- Single-source, 2 and 4-port configurations
- Accurate S-parameter measurements for passive and active devices
- Multitouch display with intuitive user interface
- Economical signal-integrity and materials characterization
Applications
- Mobile telecom component production
- Wireless LAN manufacturing and testing
- Aerospace and defense applications
- Passive and active device characterization
- Signal integrity and materials analysis
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 10MHz <= 100MHz |
| Connector Type | 2.4mm-Male (Jack) |
| Form Factor | Benchtop |
