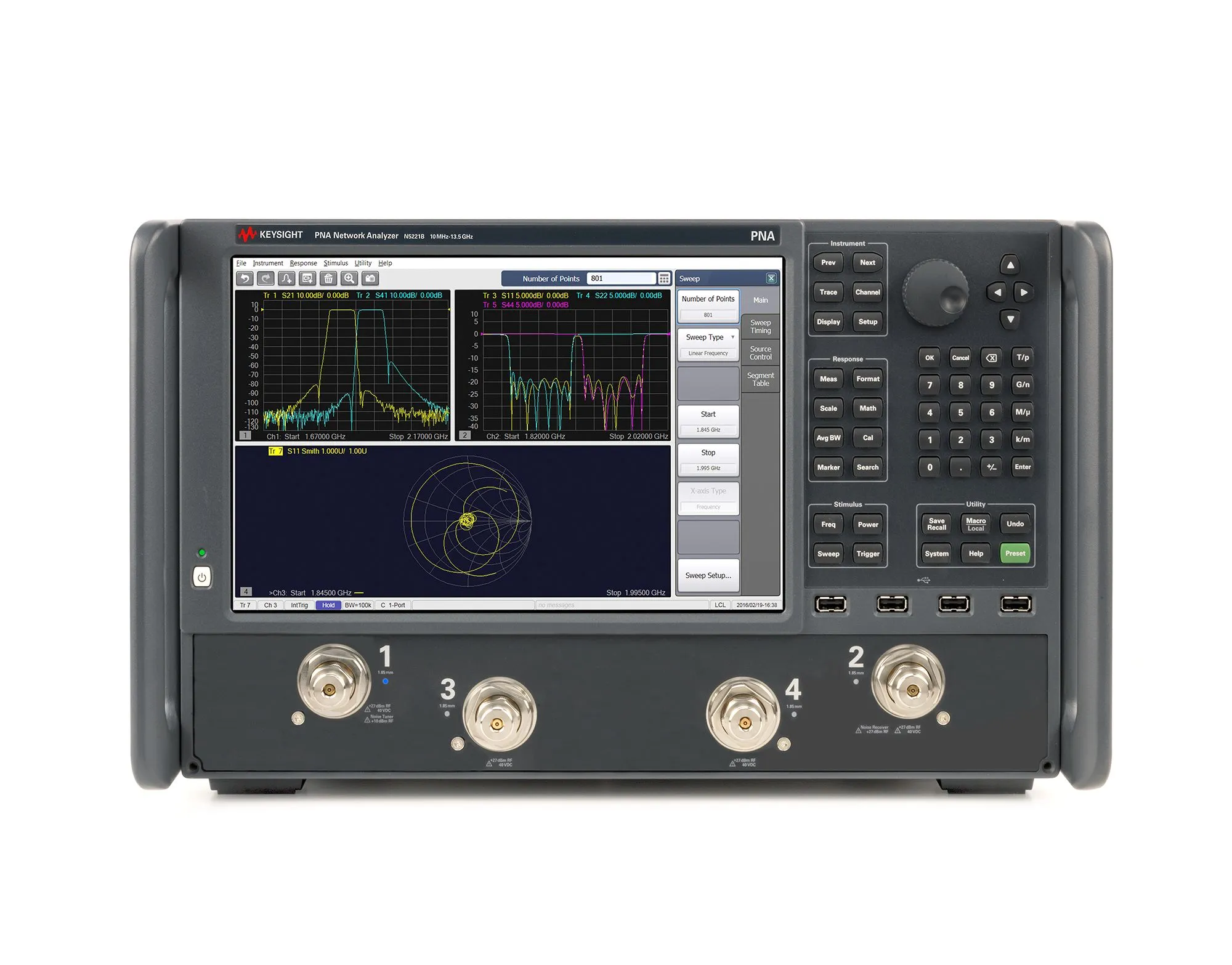

Keysight N5227B PNA Microwave Network Analyzer

Overview

The Keysight N5227B is a high-performance microwave network analyzer operating from 10 MHz to 67 GHz. Available in 2-port single-source or 4-port dual-source configurations, the N5227B combines industry-leading RF performance with intuitive measurement capabilities for characterizing amplifiers, mixers, frequency converters, and other active components.

Key Features

• Frequency range: 10 MHz to 67 GHz
• High dynamic range: 134 dB at 20 GHz test port
• Low trace noise: 0.002 dB rms at 1 kHz bandwidth
• High source output power: +13 dBm at 1 GHz to +11 dBm at 67 GHz
• Fast measurement speed: 3.6 to 23 μsec/point
• High stability: less than 0.03 dB/°C
• Integrated pulse modulators and pulse generators for pulsed S-parameter measurements

Applications

• Amplifier characterization and testing
• Mixer and frequency converter analysis
• Pulsed S-parameter measurements
• Active device characterization
• Component validation and quality assurance
