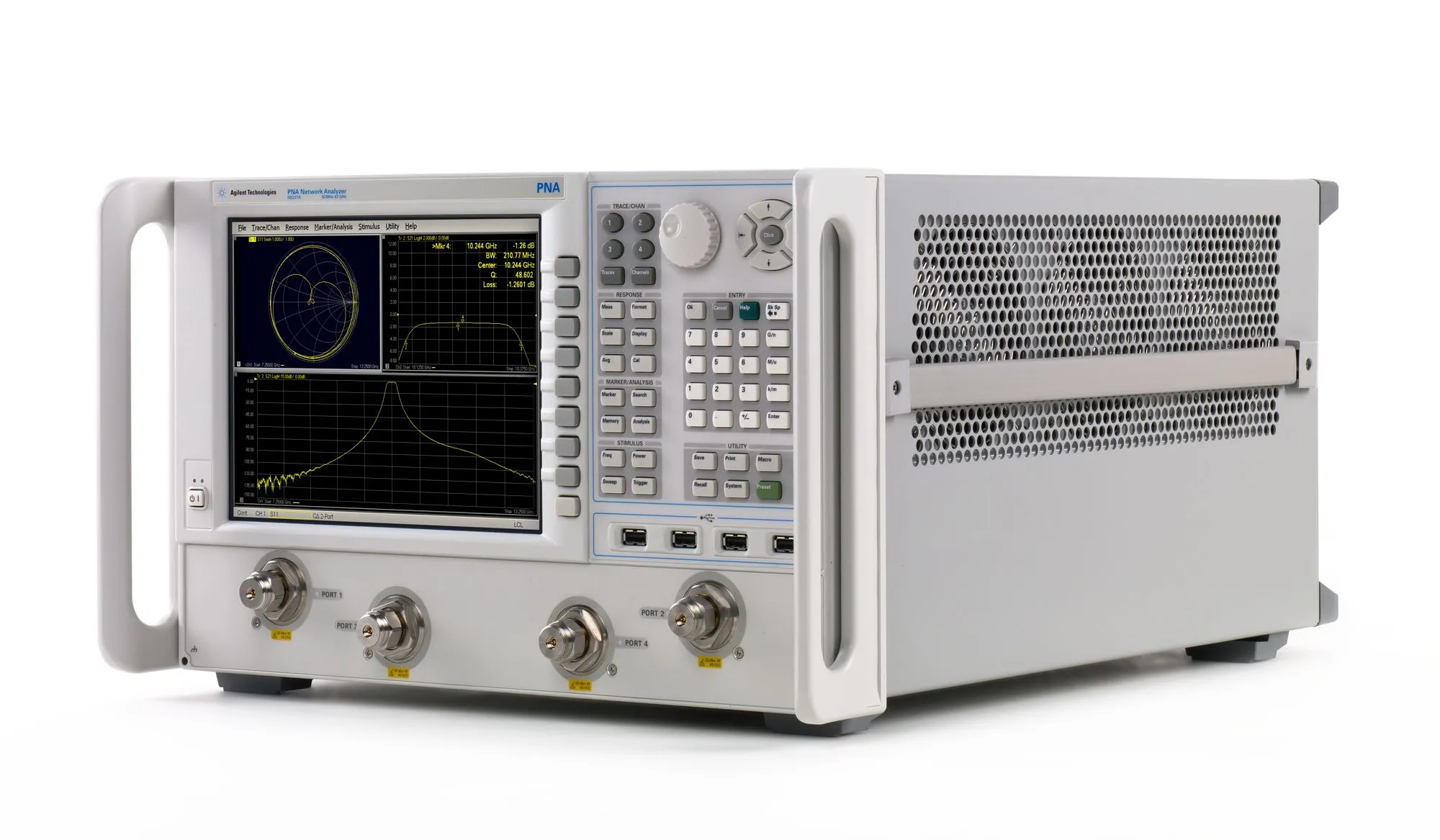

Keysight N5227A PNA Microwave Network Analyzer

Overview

The Keysight N5227A is a high-performance microwave network analyzer from the PNA series, engineered for testing and characterizing RF amplifiers, mixers, and frequency converters. With frequency coverage from 10 MHz to 26.5 GHz, it offers both 2-port single-source and 4-port dual-source configurations with exceptional measurement stability and dynamic range for demanding RF applications.

Key Features

• Frequency range: 10 MHz to 26.5 GHz
• 2-port single-source or 4-port dual-source S-parameter test
• Wide dynamic range: greater than 127 dB at test port above 500 MHz
• 131 dB receiver dynamic range with 32,001 measurement points and 32 channels
• 15 MHz IF bandwidth
• High output power: +13 dBm with 38 dB power sweep range
• Low noise floor: -114 dBm at 10 Hz IF bandwidth
• 10.4 inch XGA color LCD touchscreen display
• 3.5 mm male RF connectors, 50 ohm
• 4 USB 2.0 ports on front panel
• Built-in interfaces: GPIB, USB, LAN, Handler I/O

Applications

• S-parameter measurement with smallest uncertainty and highest stability
• Active component characterization with simplified measurement setups
• RF amplifier gain and noise figure measurements
• Mixer and frequency converter testing
• RF filter and matching network analysis
