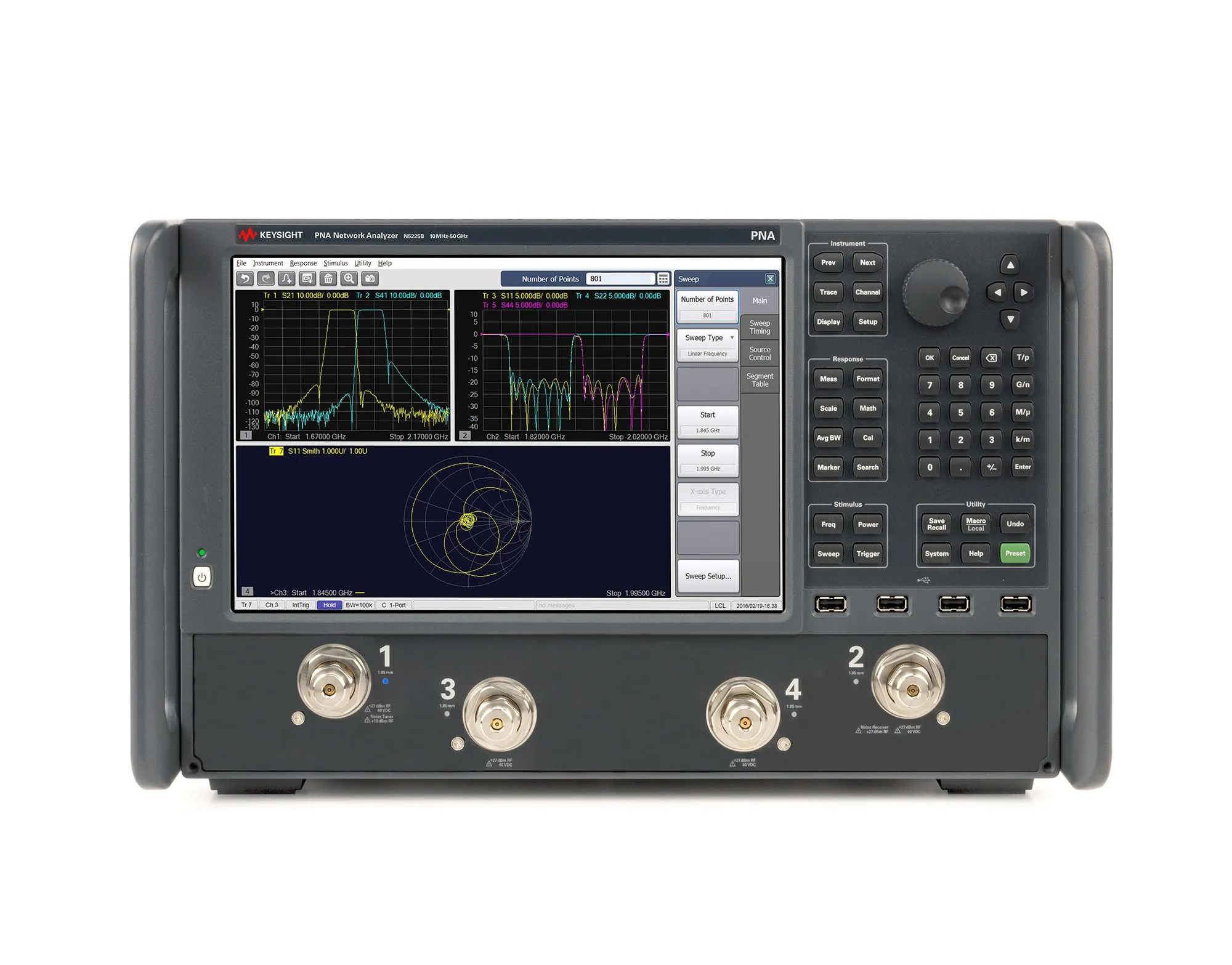

Keysight N5225B PNA Microwave Network Analyzer

Overview

The Keysight N5225B is a high-performance microwave network analyzer from the PNA series, designed for fast and accurate testing of amplifiers, mixers, and frequency converters. Operating from 10 MHz to 50 GHz, it offers both 2-port single-source and 4-port dual-source configurations with exceptional RF performance and measurement stability.

Key Features

• Frequency range: 10 MHz to 50 GHz
• 2-port single-source or 4-port dual-source configurations
• Wide dynamic range: greater than 127 dB at test port above 500 MHz
• 131 dB receiver dynamic range with 32,001 measurement points and 32 channels
• 15 MHz IF bandwidth for flexible measurement optimization
• High output power: +13 dBm with 38 dB power sweep range
• Low noise floor: -114 dBm at 10 Hz IF bandwidth
• 12.1 inch color LCD touchscreen display
• 2.4 mm male RF connectors, 50 ohm
• Built-in pulse modulators and pulse generators for pulsed S-parameter measurements
• 4 USB 2.0 ports on front panel, VGA video output
• Multiple interfaces: GPIB, USB, LAN, Handler I/O

Applications

• S-parameter measurements with superior measurement uncertainty and stability
• Active component characterization with simplified application setups
• Amplifier gain and noise figure measurements
• Mixer and frequency converter testing
• Pulsed RF component measurements
