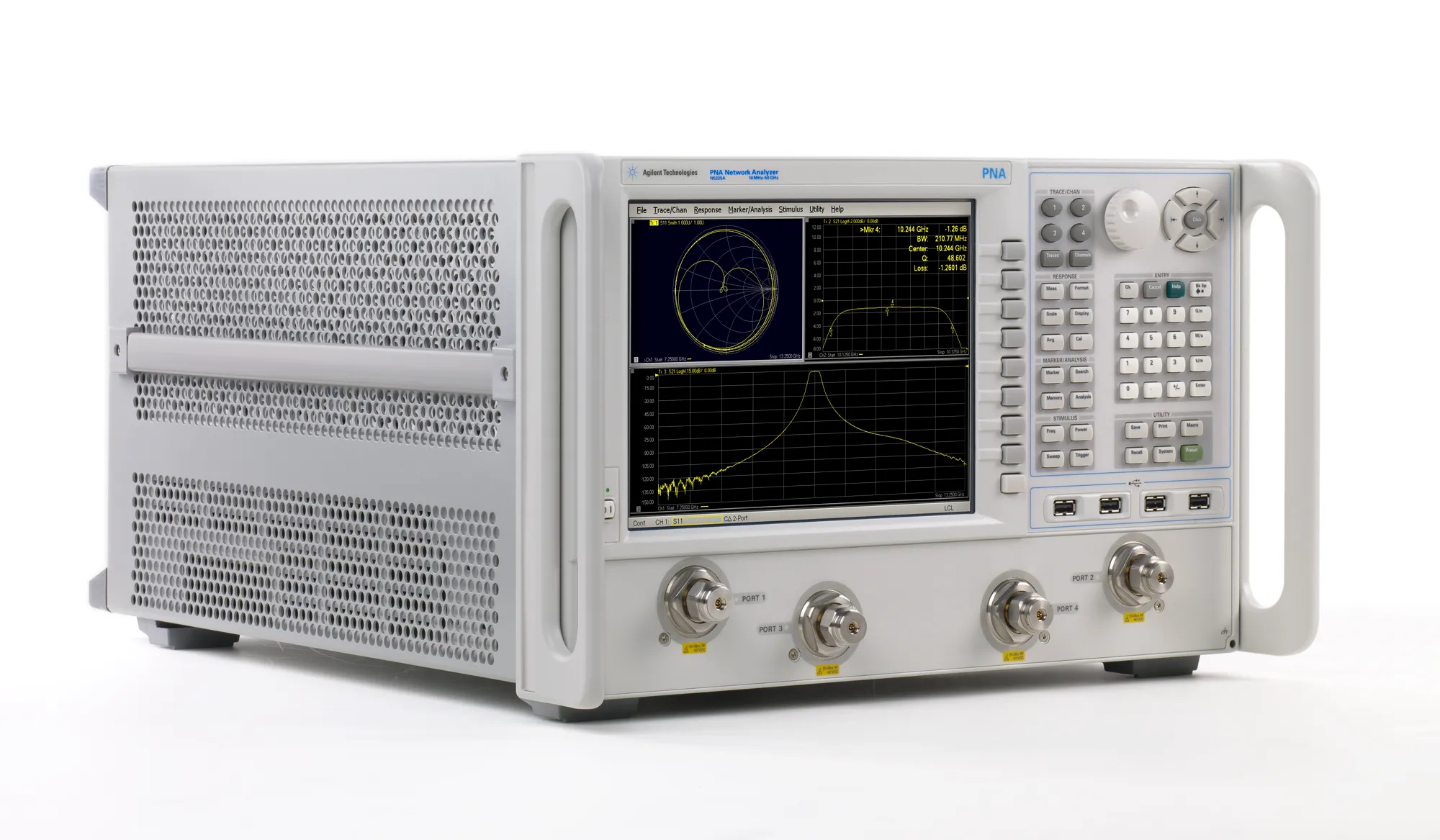

Keysight N5225A Microwave Network Analyzer
Request a quote
Keysight N5225A microwave network analyzer offering S-parameter measurements up to 50 GHz with 127 dB dynamic range and superior measurement stability for RF device characterization.
Product details
| Model | N5225A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5225A is a high-performance microwave network analyzer from the PNA series, delivering industry-leading S-parameter measurements for passive and active device characterization. With a frequency range extending to 50 GHz, exceptional dynamic range of 127 dB, and output power of 13 dBm, the N5225A provides the measurement accuracy and stability required for advanced RF device testing in R&D and production environments.
Key Features
- Frequency range: 10 MHz to 50 GHz
- Dynamic range: 127 dB
- Output power: 13 dBm
- 2-port or 4-port configurations available
- Outstanding measurement integrity and stability
- Customizable performance for specific measurement requirements
- Supports measurements on active and passive components
Applications
- Filter and duplexer characterization
- Amplifier and frequency converter testing
- Millimeter-wave component measurements
- Signal integrity assessment
- Materials characterization
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | 2.4mm-Male (Jack) |
| Form Factor | Benchtop |
