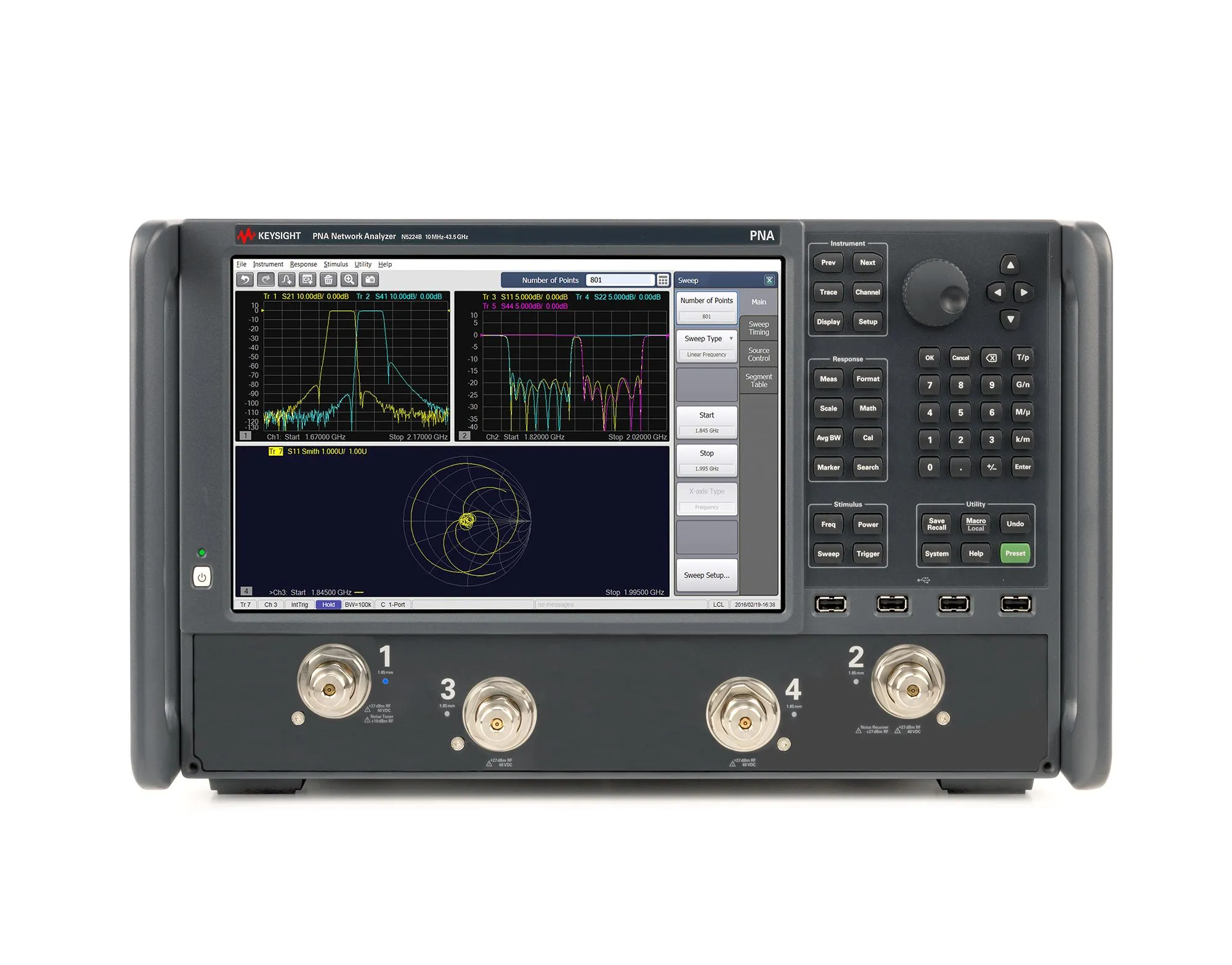

Keysight N5224B Microwave Network Analyzer
Request a quote
Keysight N5224B is a high-performance microwave network analyzer covering 10 MHz to 43.5 GHz with dual sources and noise figure measurement for active device characterization.
Product details
| Model | N5224B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5224B is a high-performance microwave network analyzer from the PNA series, delivering comprehensive RF measurement capabilities for passive and active device characterization. Covering from 10 MHz to 43.5 GHz with exceptional measurement integrity and stability, the N5224B enables accurate S-parameter measurements and advanced RF testing applications.
Key Features
- Frequency range: 10 MHz to 43.5 GHz
- 2-port with one source or 4-port with two sources
- S-parameter measurements with superior accuracy and minimal uncertainty
- Source and receiver attenuators, bias-tees, and pulse generators
- Integrated noise figure measurement
- Intuitive user interface with multi-touch display
- Customizable configurations for specific measurement needs
Applications
- Amplifier and frequency converter characterization
- Filter and duplexer testing
- Mixer analysis and optimization
- Millimeter-wave measurements
- Signal integrity and material characterization
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | 2.4mm-Male (Jack) |
| Form Factor | Benchtop |
