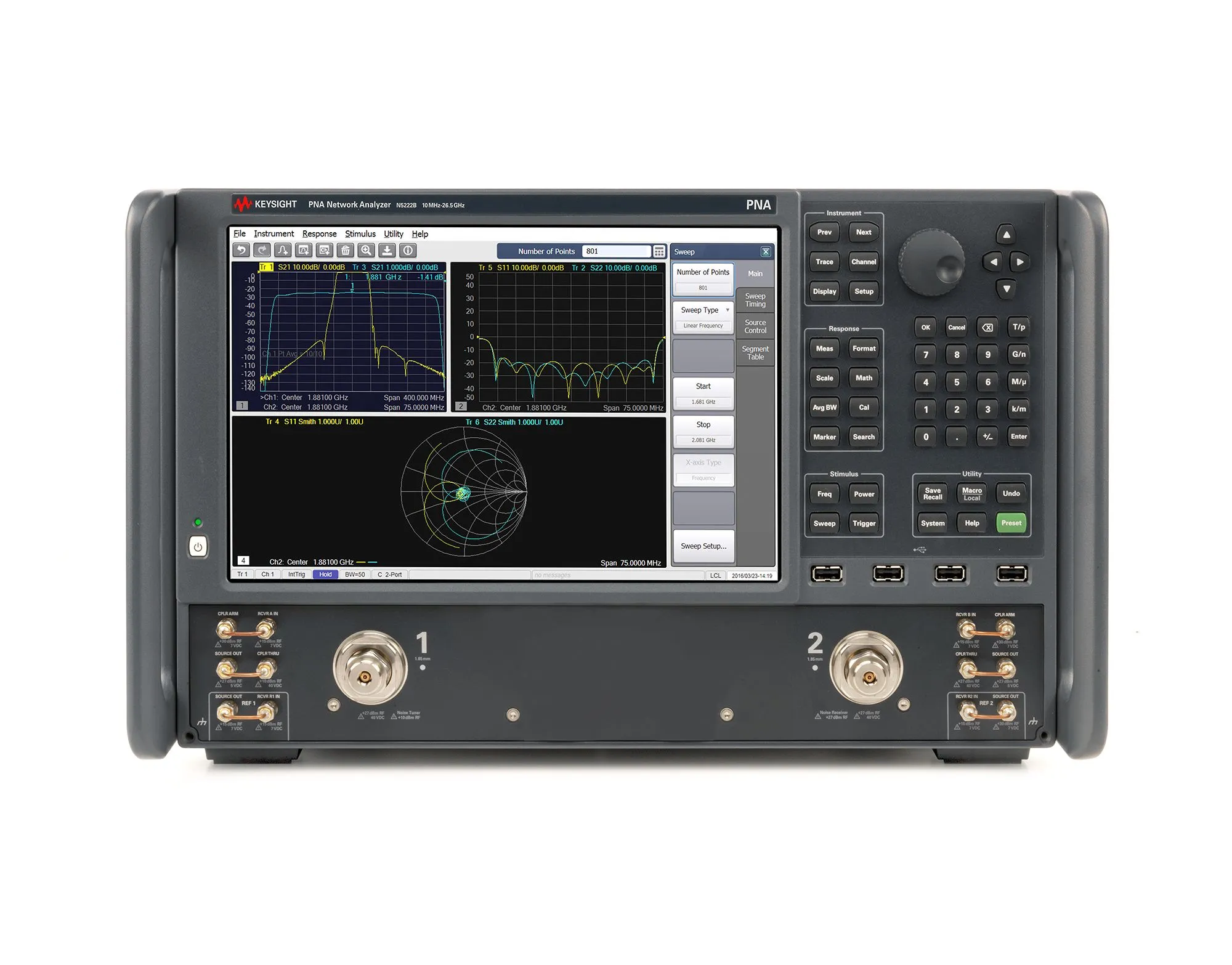

Keysight N5222B Microwave Network Analyzer

Overview

The Keysight N5222B is a PNA-Series microwave network analyzer offering industry-leading performance for testing passive and active RF components. With a frequency range of 10 MHz to 26.5 GHz, it provides exceptional S-parameter measurement capability with the highest stability and lowest trace noise in its class, making it ideal for characterizing amplifiers, mixers, filters, and frequency converters.

Key Features

• Frequency range: 10 MHz to 26.5 GHz with 2-port single-source and 4-port dual-source configurations
• High source output power: +13 dBm at 1 GHz
• Exceptional dynamic range: 134 dB at 20 GHz test port
• Low trace noise: 0.002 dB rms at 1 kHz bandwidth
• Fast measurement speed: 3.6 to 23 μsec/point
• High stability: less than 0.03 dB/°C
• Multi-touch display with intuitive user interface
• Built-in pulse modulators and generators for pulsed S-parameter measurement

Applications

• S-parameter measurement (CW and pulsed)
• Noise figure characterization
• Gain compression and intermodulation analysis
• Frequency converter conversion gain/loss measurement
• Millimeter-wave component characterization
• Material property measurements
• Signal integrity analysis
• Antenna characterization and testing
