Keysight N5222A PNA Network Analyzer

Overview

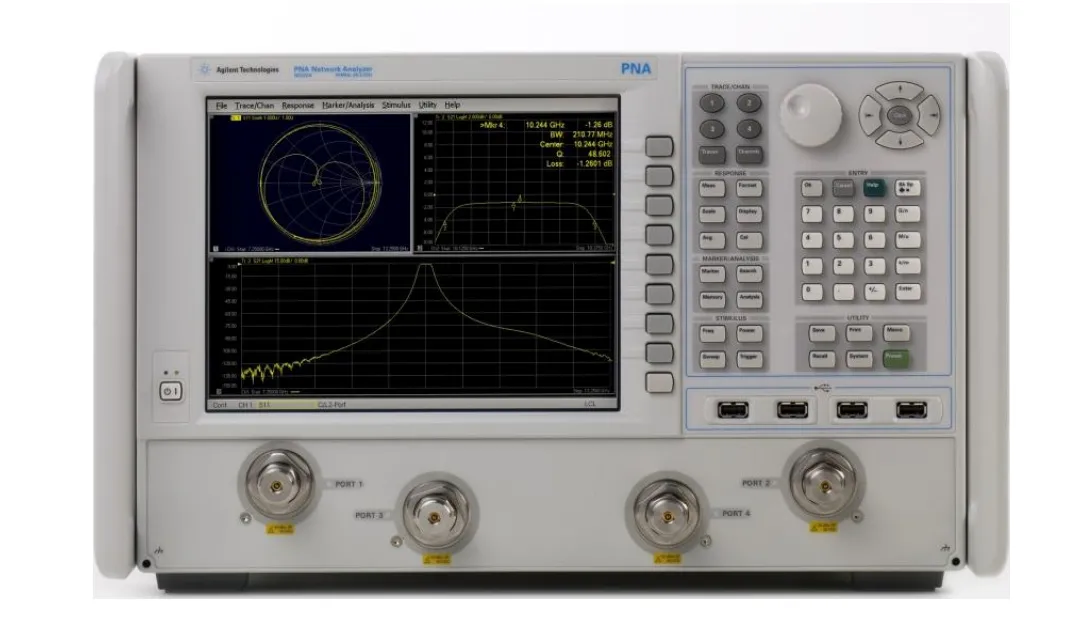

The Keysight N5222A is a high-performance microwave network analyzer from the PNA Series, designed for precise S-parameter measurements and device characterization up to 26.5 GHz. With industry-leading dynamic range, low noise floor, and high output power, the N5222A provides the measurement accuracy and stability required for demanding RF and microwave applications.

Key Features

• Frequency range: up to 26.5 GHz
• Dynamic range: 127 dB (with 134 dB at 20 GHz test port)
• Output power: +13 dBm at 1 GHz
• Receiver dynamic range: 131 dB (32,001 points, 32 channels)
• Harmonic content: -21 dBc
• 2-port or 4-port configurations
• 10.4 inch XGA color LCD touch screen with intuitive interface
• RF connector: 3.5 mm (male), 50 ohm
• Multiple interface ports: USB, VGA, LAN, GPIB, Handler I/O

Performance Characteristics

• Measurement speed: 3.6 to 23 μsec/point
• Trace noise: 0.002 dB rms at 1 kHz IF bandwidth
• Receiver noise floor: -114 dBm at 10 Hz IF bandwidth
• Temperature stability: less than 0.03 dB/°C

Applications

• S-parameter measurements for device characterization
• Amplifier, filter, and duplexer testing
• Mixer and frequency converter evaluation
• Noise figure analysis
• Gain compression testing
• Component validation for RF and microwave systems
