Keysight N4694D Electronic Calibration Module
Request a quote
Keysight N4694D precision 2-port ECal module, 10 MHz to 67 GHz with Option 0DC, 1.85 mm connectors, fast USB-controlled VNA calibration.
Product details
| Model | N4694D |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview

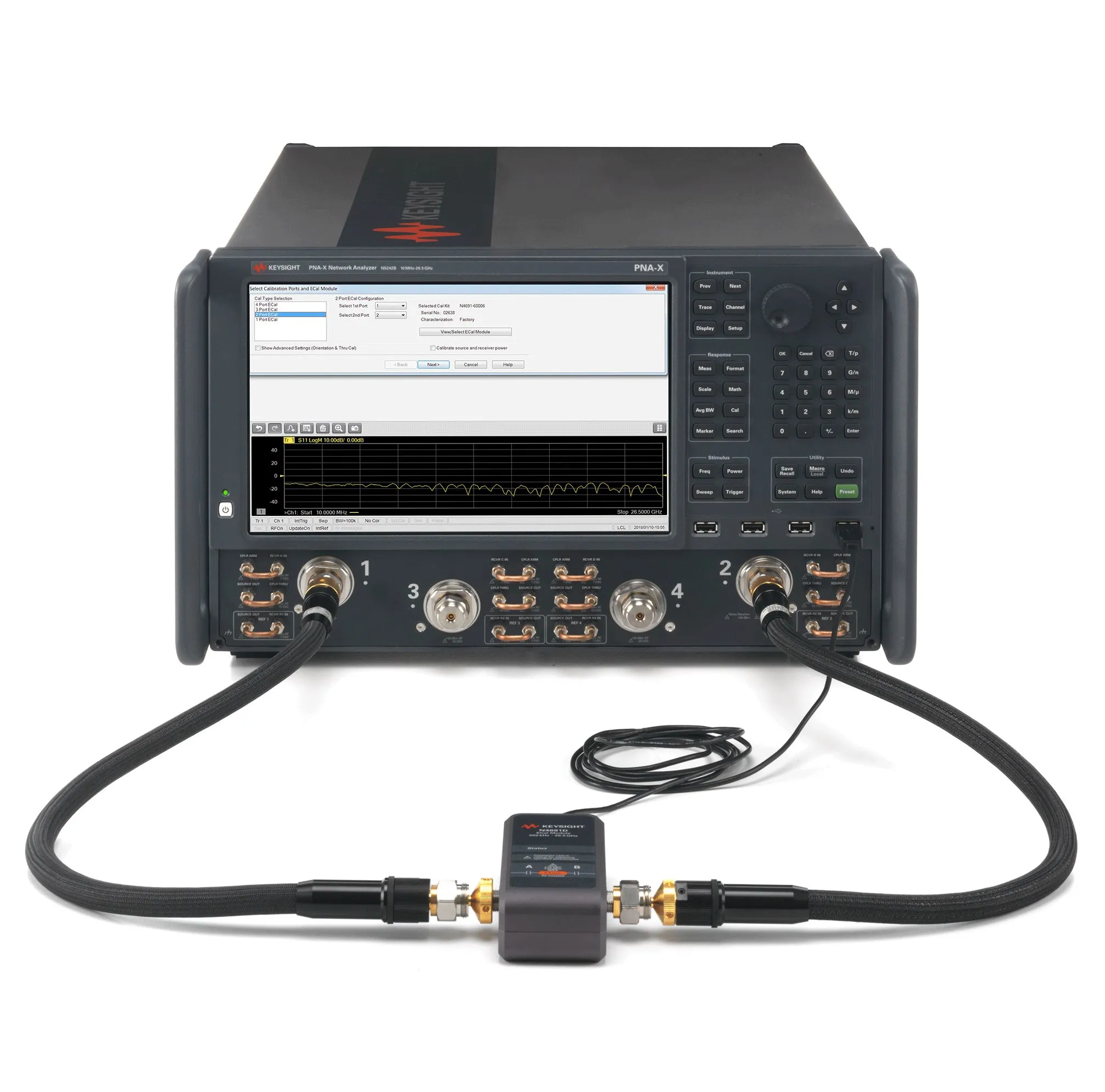

The Keysight N4694D is a precision 2-port microwave electronic calibration module for Keysight vector network analyzers. It supports 1.85 mm connectors and operates from 10 MHz to 67 GHz, with DC extension available via Option 0DC. A full two-port calibration takes less than half the time of traditional mechanical calibration kits while providing comparable accuracy.
Key Features
- Precision 2-port microwave ECal module with high accuracy
- Frequency coverage from 10 MHz to 67 GHz or DC to 67 GHz (Option 0DC)
- Fast, easy, and accurate full two-port calibration
- 1.85 mm connectors with male/male, female/female, or male/female configuration options
- Direct control from Keysight vector network analyzers via USB
- Reduced connector wear and lower repair costs
Applications
- Vector network analyzer calibration
- Microwave and RF device characterization
- Broadband device modeling
- Time domain and signal integrity analysis
Included Accessories
- Plastic storage case
Specifications
| High Frequency (range) | 50GHz <= 85GHz |
| Low Frequency (range) | 10MHz <= 100MHz |
| Form Factor | Accessory |
