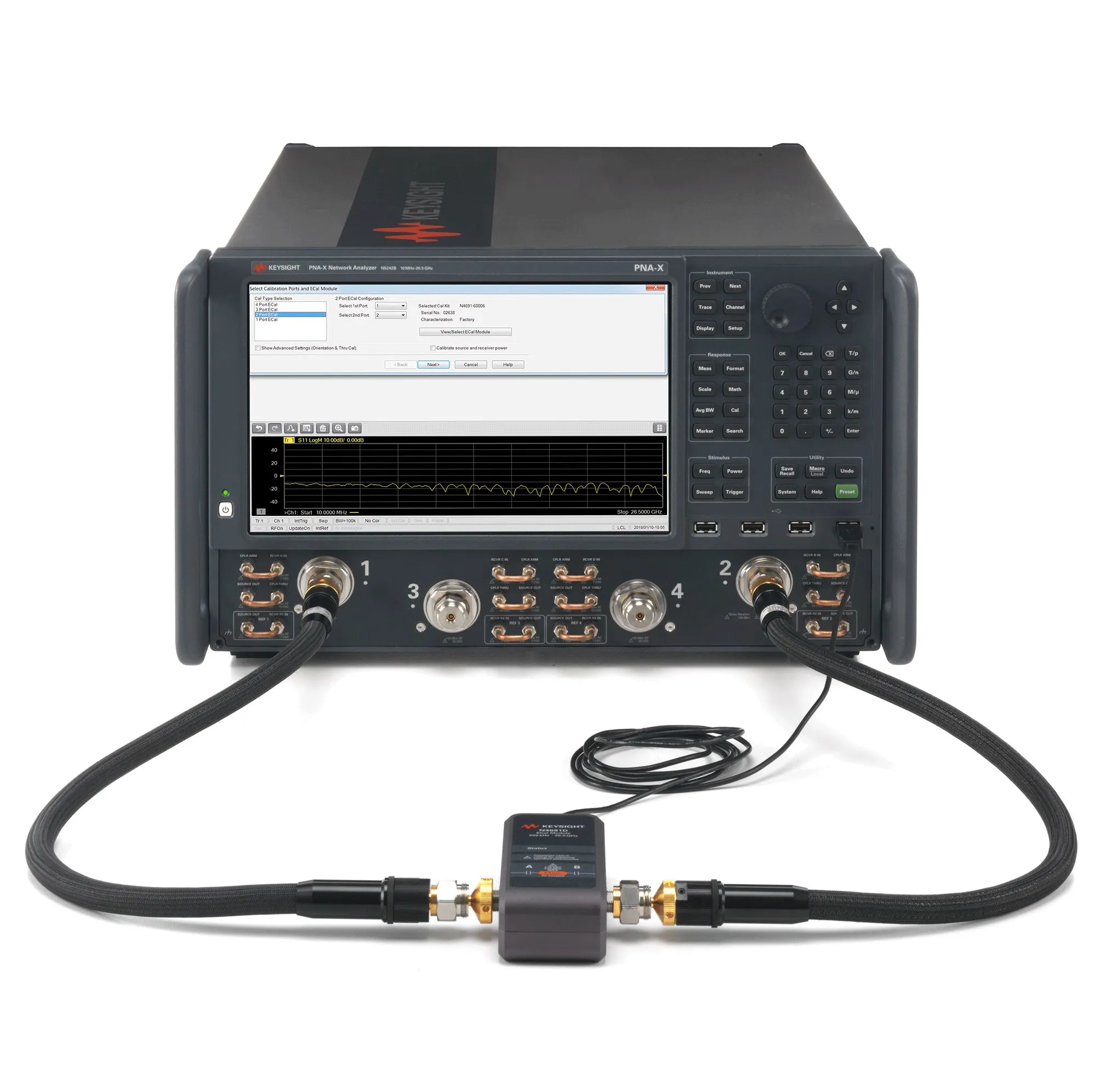

Keysight N4692D Microwave Electronic Calibration Module

Overview

The Keysight N4692D is a precision microwave electronic calibration (ECal) module designed for accurate and efficient calibration of vector network analyzers. Supporting 2.92 mm connectors and frequency coverage from 10 MHz to 40 GHz (or DC to 40 GHz with Option 0DC), the N4692D simplifies the calibration process with automatic USB control and reduces connector wear on both test equipment and calibration standards.

Key Features

• Precision 2-port microwave ECal with high accuracy
• Frequency range: 10 MHz to 40 GHz (standard) or DC to 40 GHz (Option 0DC)
• 2.92 mm connectors available in male-male, female-female, and male-female configurations
• Fast and accurate full two-port calibration via USB
• Direct control from Keysight vector network analyzers
• Reduces connector wear and associated maintenance costs
• Solid-state switching for reliable operation

Applications

• High-frequency network analyzer calibration
• Broadband device modeling and characterization
• Time-domain and signal-integrity analysis
• RF and microwave device testing

Included Accessories

• Plastic storage case for ECal module and accessories
• Optional 2.92 mm adapters (Model N4692D-00A)
