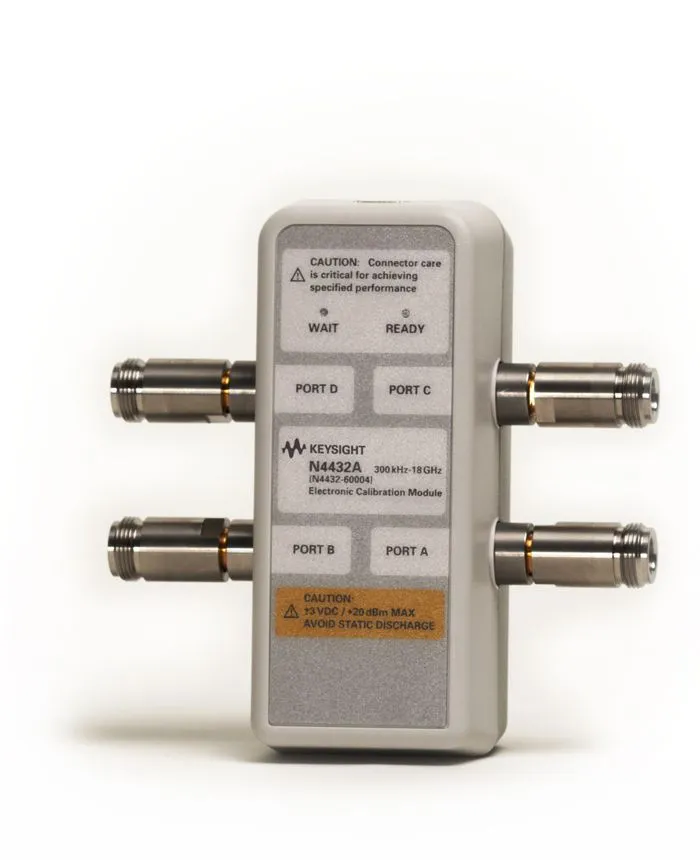

Keysight N4432A Microwave Electronic Calibration Module
Keysight N4432A is a 4-port microwave ECal module with 300 kHz to 18 GHz coverage and NIST-traceable calibration, delivering high-accuracy VNA calibration via USB.
Product details
| Model | N4432A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N4432A Microwave electronic calibration (ECal) module is a precision 4-port calibration standard for vector network analyzers operating from 300 kHz to 18 GHz. This module uses single-connection calibration technique, reducing calibration time and connector wear compared to traditional mechanical calibration kits.
ECal modules are transfer standards that transfer factory calibration accuracy to network analyzers. The N4432A operates with Keysight PNA and ENA series analyzers through direct USB interface control, eliminating intensive operator interaction and associated errors.
Key Features
- Precision 4-port microwave ECal module
- 300 kHz to 18 GHz frequency range
- NIST-traceable accurate calibrations
- Fast full 4-port calibration with single connection
- Standard Type-N female connectors
- USB interface for direct PNA and ENA series analyzer control
- Reliable solid-state switching
- Mixed connector options available (3.5mm and Type-N combinations)
- Reduced connector wear and maintenance costs
Applications
- Broadband RF and microwave device characterization
- Network analyzer calibration in production environments
- Laboratory calibration and research applications
- High-frequency component testing and verification
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
