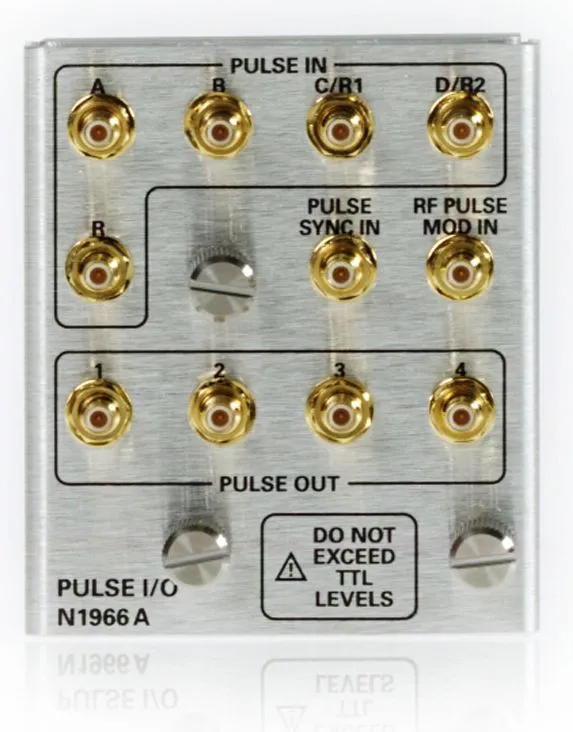

Keysight N1966A Pulse I/O Adapter
Request a quote
Keysight N1966A is a pulse I/O adapter that converts 15-pin D-sub connectors to coaxial SMB male connectors for improved PNA-X network analyzer connectivity.
Product details
| Model | N1966A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N1966A is a pulse I/O adapter designed for use with Keysight PNA-X network analyzers. It provides a convenient interface by converting 15-pin D-sub pulse I/O connectors on the PNA-X's rear panel to coaxial SMB male connectors, improving connectivity and reducing connection complexity.
Key Features
- Converts 15-pin D-sub pulse I/O to coaxial SMB male connectors
- Input connections for receiver IF gates (one reference and four test receivers)
- Output connections from internal pulse generators
- RF signal pulse modulation drive input
- Trigger input for internal pulse generator timing
- Improves connector reliability and reduces connection wear
Applications
- Pulse modulation and triggering with PNA-X network analyzers
- RF pulse characterization and measurements
- Pulse generator integration in test systems
Specifications
| Form Factor | Accessory |
