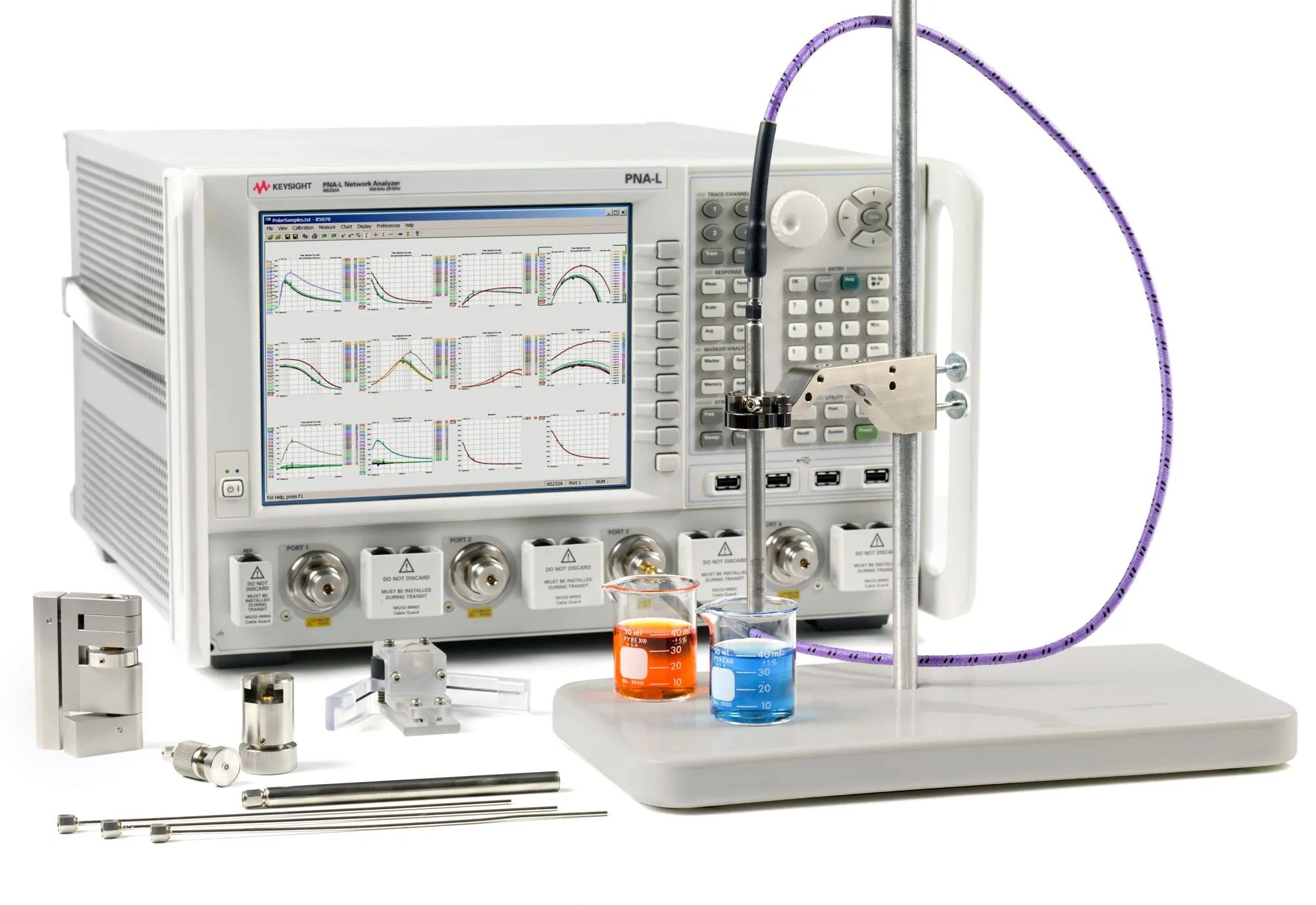

Keysight N1501A-203 50 GHz Flexible Cable
Request a quote
N1501A-203 is a 50 GHz flexible cable for dielectric probe systems, enabling complex permittivity measurement of RF and microwave component materials.
Product details
| Model | N1501A-203 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N1501A-203 is a 50 GHz flexible cable designed for use with Keysight dielectric probe kits and network analyzers. It enables non-destructive measurement of the electromagnetic properties of materials including complex permittivity, which can provide critical insight into RF and microwave component performance and material composition.
Key Features
- 50 GHz maximum frequency capability
- 1 m flexible cable length with 2.4 mm female connectors
- 1.45:1 typical VSWR for minimal signal reflection
- 4.20 dB typical insertion loss
- 6° typical phase stability when bent
- Operating temperature range: -40 to +85°C
Applications
- RF and microwave component material characterization
- Dielectric material permittivity and loss measurement
- Design validation and product development
- Incoming material inspection and quality assurance
- Process monitoring and quality control
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Connector Type | 2.4mm-Female (Plug) |
