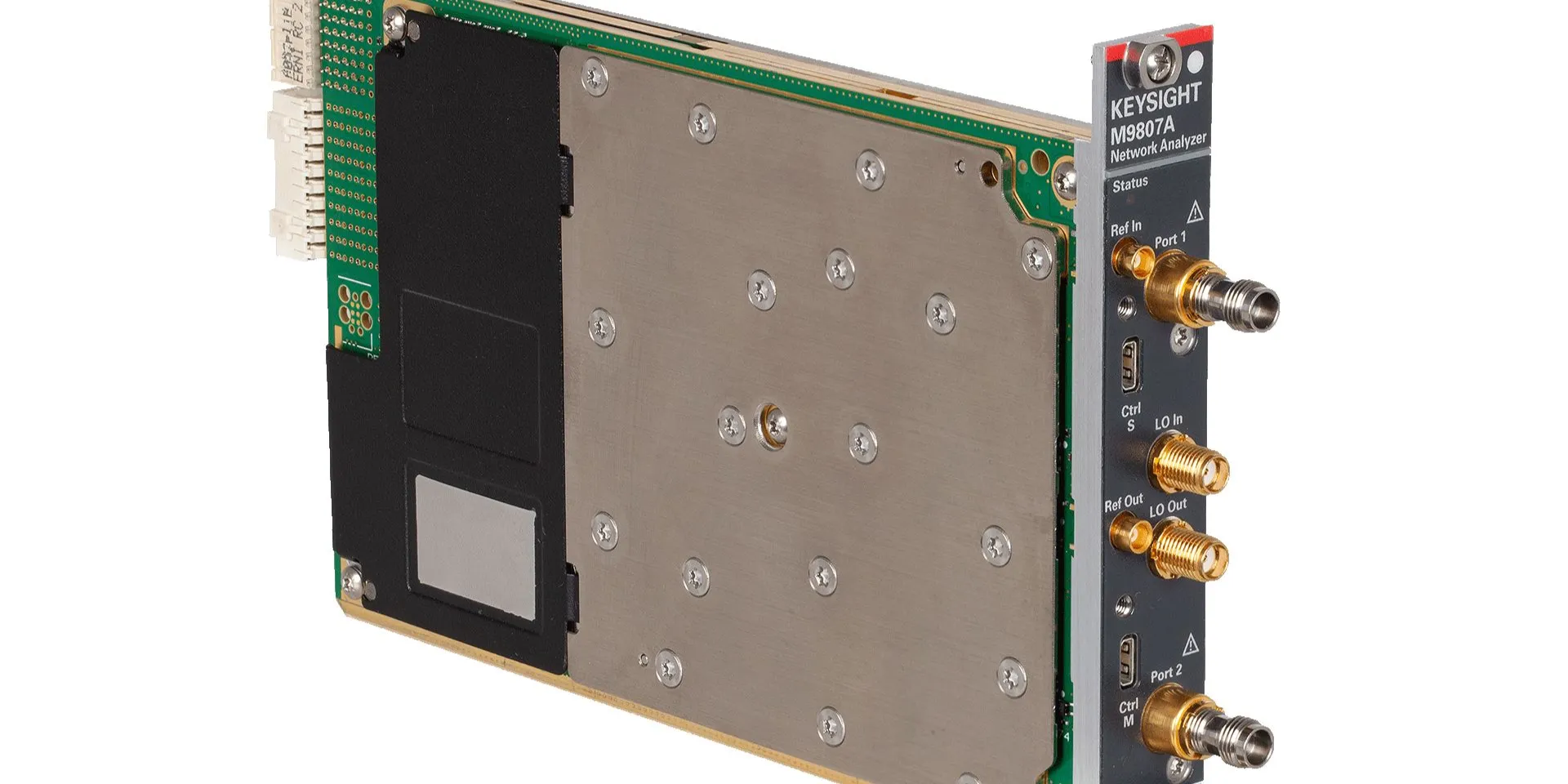

Keysight M9807A PXIe Vector Network Analyzer
Keysight M9807A — modular 2-port PXIe vector network analyzer with 100 kHz to 44 GHz millimeter-wave coverage.
Product details
| Model | M9807A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
Keysight M9807A is a modular 2-port PXIe vector network analyzer with exceptional frequency coverage to 44 GHz for millimeter-wave testing. It delivers best-in-class dynamic range and phase noise performance required for advanced RF and microwave measurement tasks. Temperature stability of 0.005 dB/°C typical and minimal trace noise make it ideal for demanding R&D and manufacturing applications.
Operating from 100 kHz to 44 GHz, the M9807A supports advanced applications including millimeter-wave component characterization and signal integrity analysis. As part of the modular M980xA series, it provides a common software platform with other Keysight VNAs for consistency across measurement systems.
Key Features
- Exceptional frequency range: 100 kHz to 44 GHz
- 2-port configuration optimized for millimeter-wave testing
- System dynamic range exceeding 140 dB
- Excellent temperature stability: 0.005 dB/°C (typical)
- Low phase noise and trace noise performance
- N-port correction capability for accurate measurements
- Electronic calibration (ECal) module support
- Modular PXIe platform for flexible system configuration
- Common software platform with Keysight PNA and ENA analyzers
Applications
- Millimeter-wave component characterization
- S-Parameter measurements at extreme frequencies
- Signal integrity analysis for high-speed designs
- Amplifier and mixer evaluation at mmWave frequencies
- Filter and duplexer testing
- Antenna design and verification
- Connector and cable characterization
- Manufacturing test for advanced RF/microwave devices
Specifications
| Features | Parameters |
| Maximum Frequency | 44 GHz |
| Output Power | n/a |
| Number of Built-In Ports | 2 |
| Harmonics | -25 dBc (Typical) |
| Best Speed at 201 Point, 1 Sweep | n/a |
| Applications | n/a |
| Components | n/a |
| Modular | Yes |
| Temperature Stability | 0.005 dB/ ⁰C |
| M9807A | 100 kHz to 44 GHz, 2-port |
