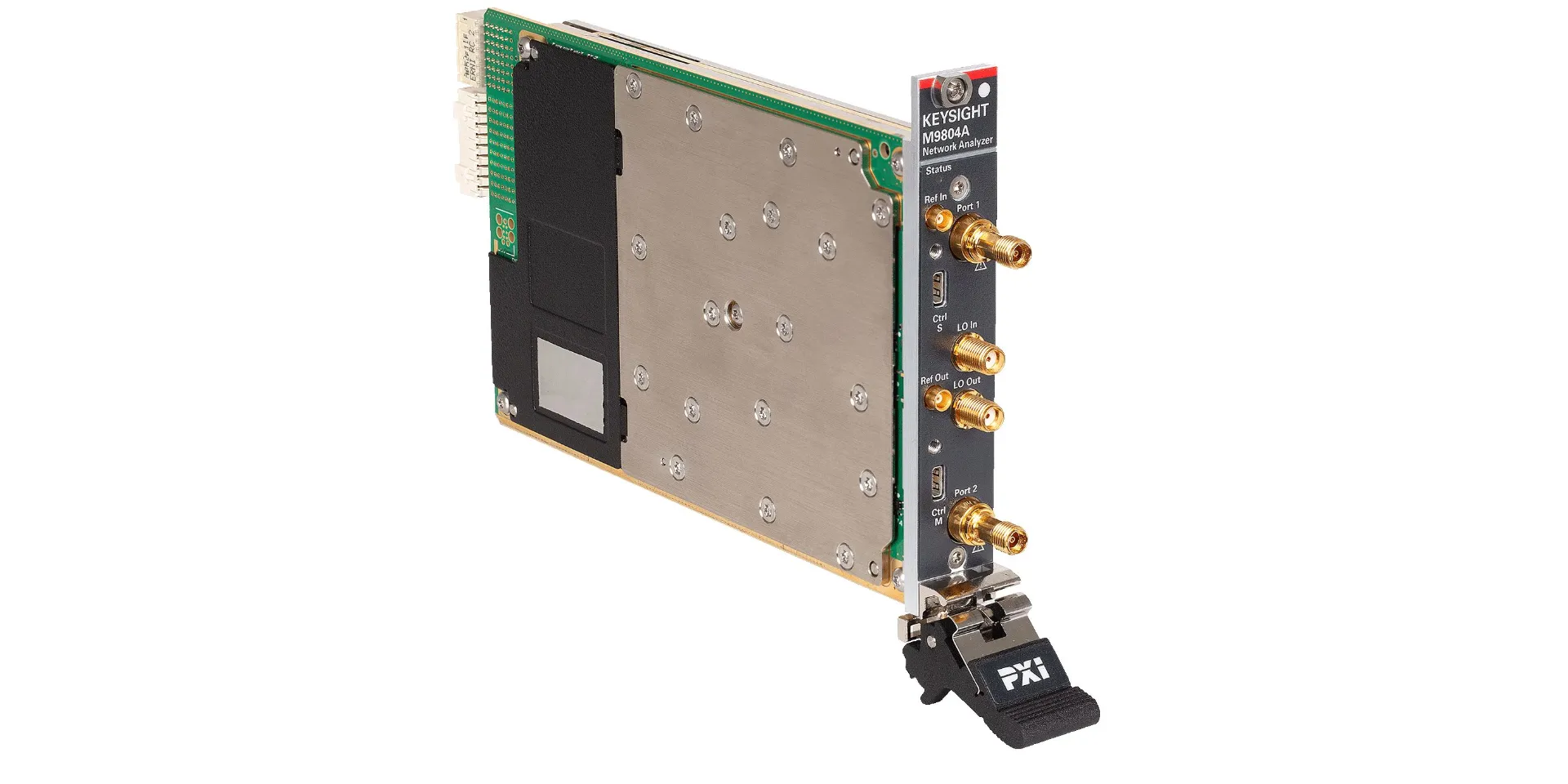

Keysight M9804A PXIe Vector Network Analyzer
Keysight M9804A — modular PXIe vector network analyzer with 9 kHz to 20 GHz coverage, 2/4/6-port configuration, and >140 dB dynamic range.
Product details
| Model | M9804A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
Keysight M9804A is a modular PXIe vector network analyzer designed for multiport RF and microwave testing. Covering 9 kHz to 20 GHz with 2, 4, or 6 configurable ports, it delivers best-in-class performance for testing passive components, amplifiers, mixers, and frequency converters. Dynamic range exceeds 140 dB with measurement speed of 1.3 ms at 201 points per sweep, making it suitable for both manufacturing and R&D applications.
Modules cascade within a single PXI chassis to create configurations with up to 50 ports. All test ports are fully synchronous, enabling simultaneous multiport measurement with N-port correction for highest accuracy.
Key Features
- Frequency range: 9 kHz to 20 GHz
- Configurable 2, 4, or 6 built-in ports
- System dynamic range exceeding 140 dB
- Fast measurement speed: 1.3 ms at 201 points, single sweep
- N-port correction for accurate multiport measurements
- Electronic calibration (ECal) module support
- Fully synchronous test ports for simultaneous measurement
- Modular design cascades up to 50 ports in single chassis
- Common software platform with Keysight PNA and ENA analyzers
Applications
- S-Parameter measurements and characterization
- Signal integrity analysis and verification
- Amplifier design and testing
- Mixer and frequency converter evaluation
- Filter and duplexer characterization
- Cable and connector testing
- Antenna measurement and verification
- Multiport and multi-site manufacturing test
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Connector Type | 3.5mm-Female (Plug) |
