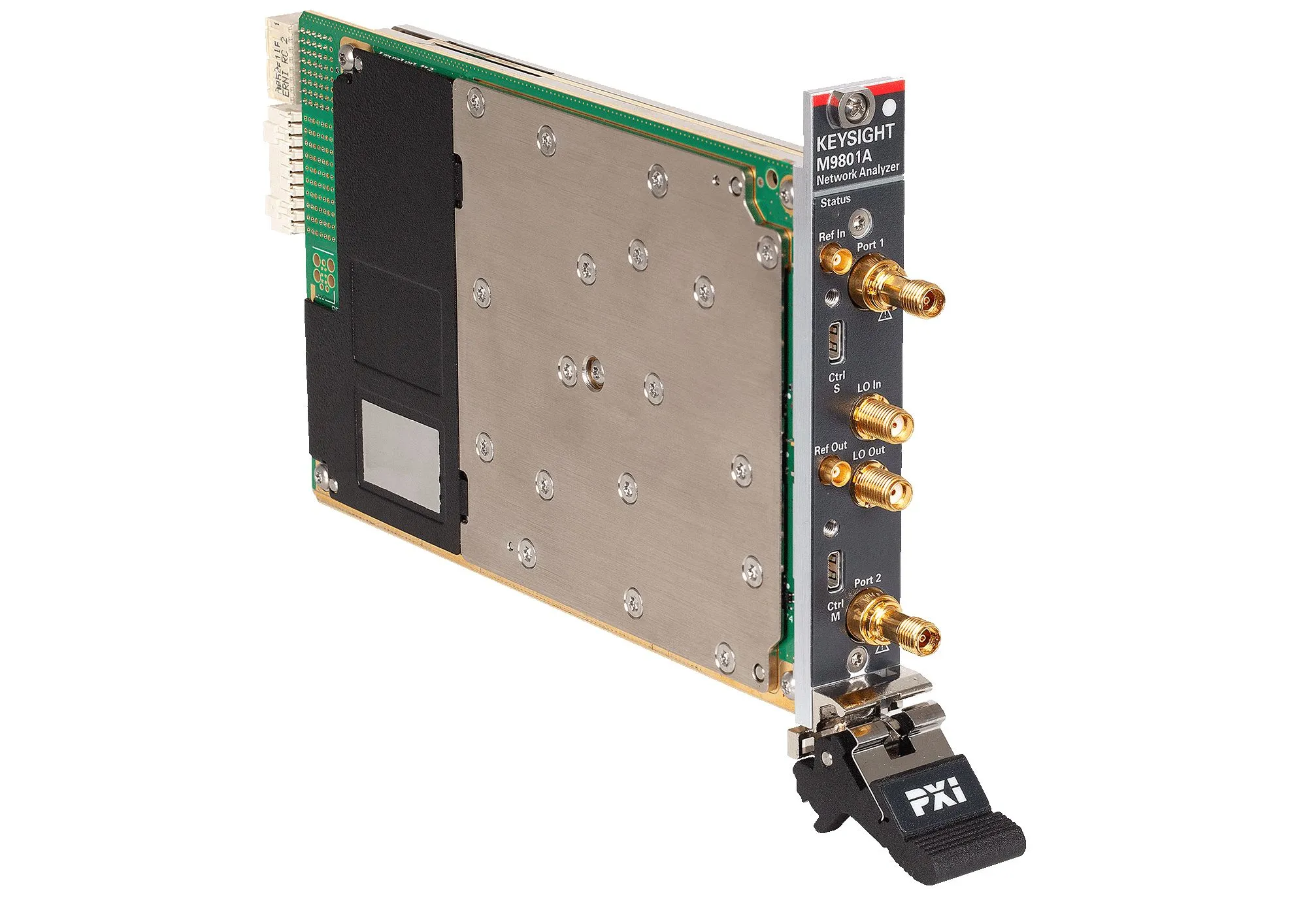

Keysight M9801A PXIe Vector Network Analyzer
Request a quote
Keysight M9801A PXIe vector network analyzer, 9 kHz to 6.5 GHz, 2/4/6-port configuration with multiport error correction and fast measurement speed.
Product details
| Model | M9801A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight M9801A is a PXIe-based vector network analyzer (VNA) designed for multiport RF component testing and measurement. Operating from 9 kHz to 6.5 GHz with configurable 2-, 4-, or 6-port options, the M9801A delivers fast measurement speed and industry-leading specifications for dynamic range, trace noise, and temperature stability.
Key Features
- Frequency range: 9 kHz to 6.5 GHz
- Configurable 2-, 4-, or 6-port architecture
- Multiport error correction for accurate measurements up to 50 ports when cascaded
- Fast cycle time for high-throughput testing
- Electronic calibration (ECal) module support for simplified calibration
- Excellent dynamic range and low trace noise for sensitive measurements
- Temperature stability: 0.005 dB/°C
- Typical harmonics: -25 dBc
- Modular design allows cascading multiple units in a single chassis
Applications
- Testing of passive RF components: filters, couplers, attenuators
- Amplifier and mixer characterization
- Frequency converter and modulation analysis
- Production testing and quality assurance in RF manufacturing
- Research and development for RF and microwave circuits
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Connector Type | 3.5mm-Female (Plug) |
