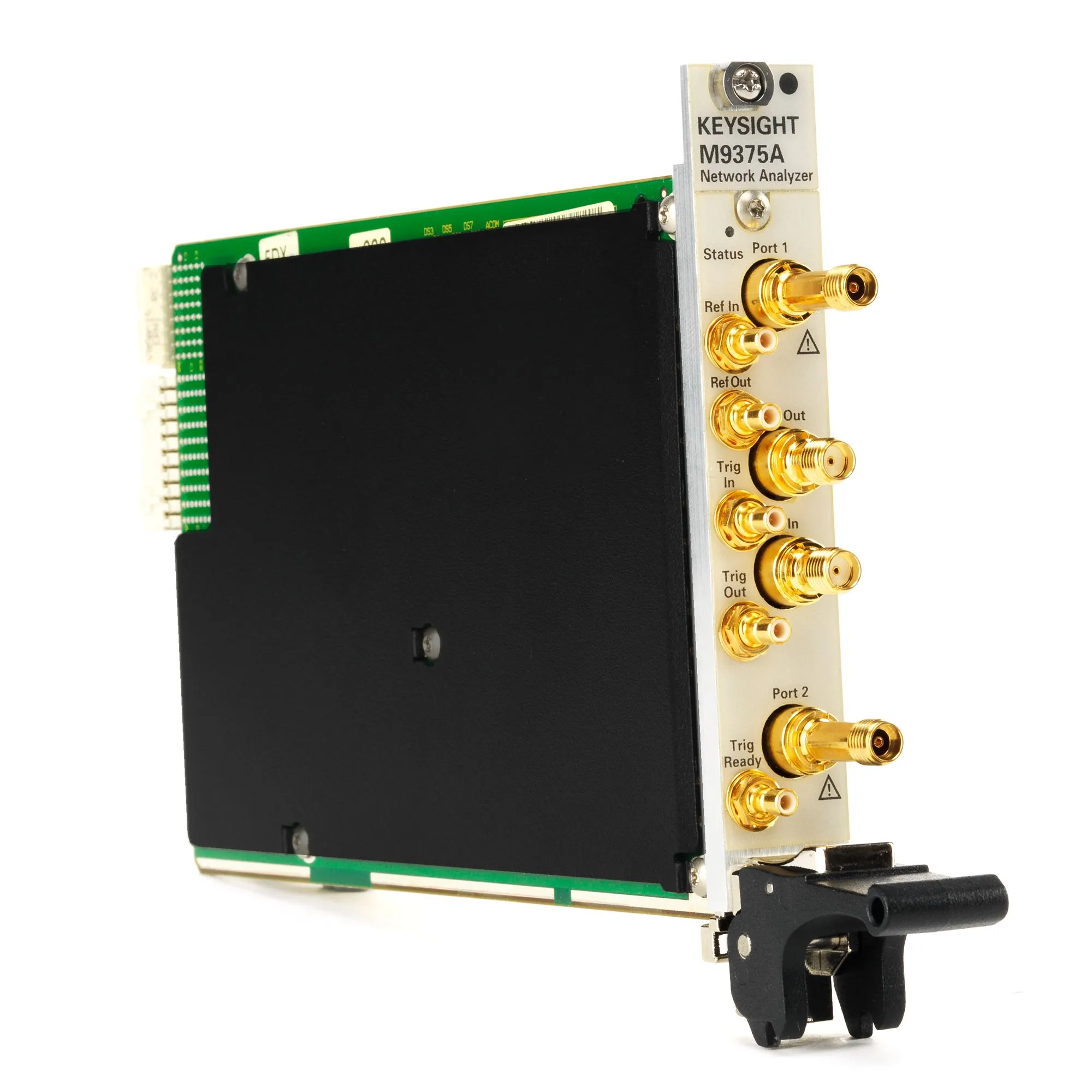

Keysight M9375A Vector Network Analyzer
Request a quote
Keysight M9375A is a full 2-port PXIe vector network analyzer with 300 kHz to 26.5 GHz frequency coverage, 115 dB dynamic range, and fast 18 msec sweep speed.
Product details
| Model | M9375A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight M9375A is a full 2-port PXIe vector network analyzer that provides complete two-port S-parameter measurements in a single PXI slot. The compact form factor allows simultaneous characterization of multiple devices, whether 2-port or multiport, using a single PXI chassis.
Key Features
- Full 2-port S-parameters in a single-slot PXIe module
- N-port multiport configurations with multiple modules (up to 32 ports)
- Configurable as multiple independent VNAs within one chassis
- Compatible with electronic calibration (ECal) modules
- All ports fully synchronous for simultaneous multiport measurements
- Multiport error correction capability
Applications
- Device characterization for RF and microwave components
- Multiport device testing and validation
- High-volume automated test environments
- Research and development for network parameter measurements
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Connector Type | 3.5mm-Female (Plug) |
| Form Factor | Benchtop |
