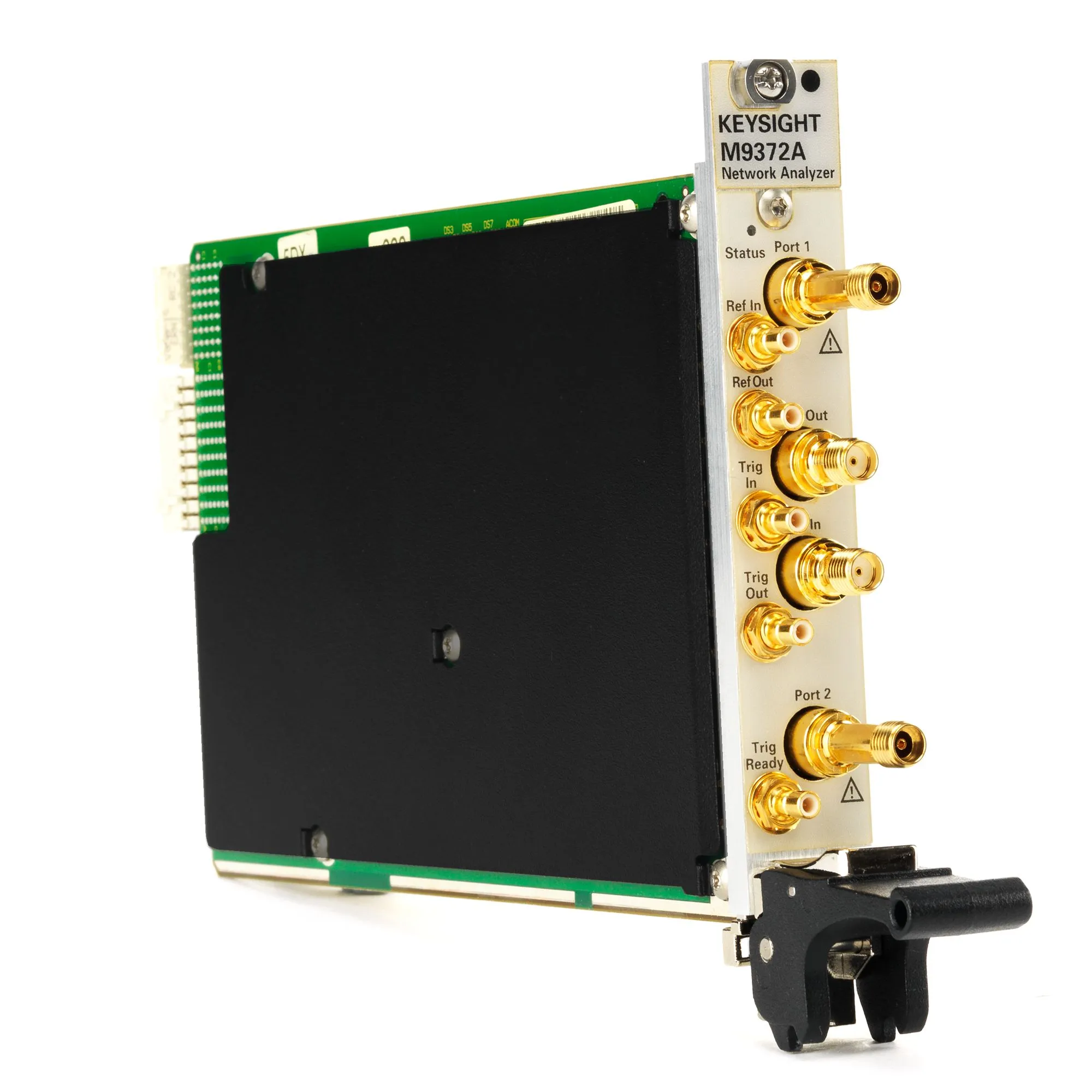

Keysight M9372A PXIe Vector Network Analyzer
Request a quote
M9372A is a PXIe vector network analyzer with 300 kHz–9 GHz frequency range, 115 dB dynamic range, 0.001 dB trace noise, and single-slot two-port S-parameter measurements.
Product details
| Model | M9372A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight M9372A is a PXIe vector network analyzer that delivers full two-port S-parameter measurements in a single PXI slot. Each module operates as an independent two-port network analyzer with best-in-class performance on dynamic range, measurement speed, trace noise, and stability. Multiple modules can be configured into multiport VNA systems up to 32 ports for measuring multiport devices, all within a single PXI chassis.
Key Features
- Full 2-port S-parameter measurements in a single-slot module
- Frequency range: 300 kHz to 9 GHz
- Dynamic range: 115 dB (250 MHz to 9 GHz)
- Trace noise: 0.001 dB typical, 0.003 dB specified
- Stability: ±0.010 dB/°C
- Sweep speed: 18 msec at 401 points with 600 kHz IFBW
- Compatible with electronic calibration (ECal) modules
- Configurable as multiple independent VNAs within a single chassis
Applications
- RF and microwave component characterization
- Filter and amplifier design validation
- Antenna impedance and S-parameter measurement
- High-speed interconnect analysis
- Multiport device testing and validation
Included Accessories
- Multiport cable kit (Y1242A)
- Accessory and tool kit (Y1281A) — SMB connector pull tool and 3.5/SMA connector socket
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Form Factor | Benchtop |
