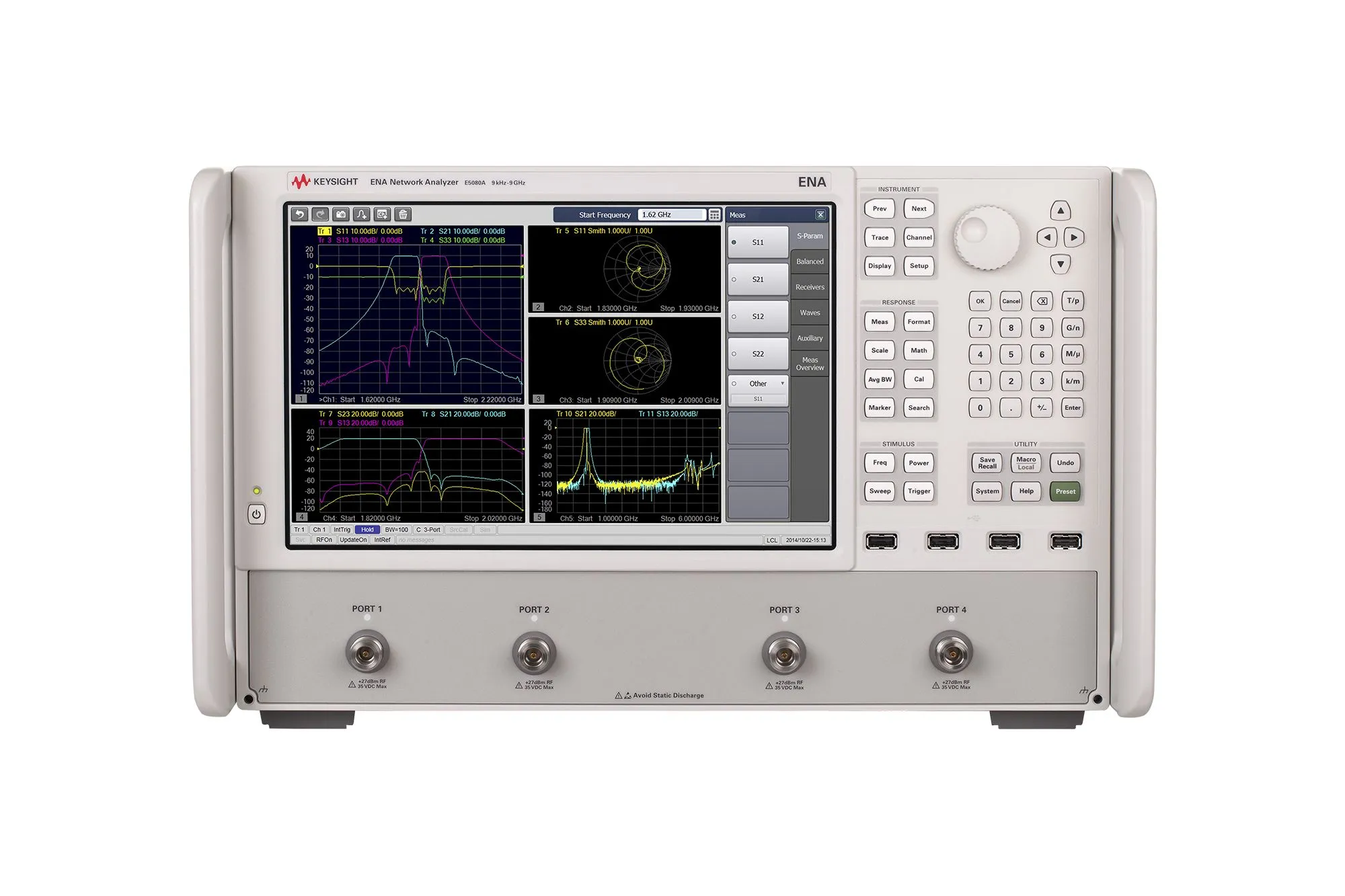

Keysight E5080A Vector Network Analyzer
Request a quote
Keysight E5080A vector network analyzer with 147 dB dynamic range, 3 ms measurement speed, and up to 40-port capability with E5092A test sets.
Product details
| Model | E5080A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight E5080A is a comprehensive vector network analyzer designed for measuring active and passive components including amplifiers, mixers, filters, duplexers, antennas, and cables. It offers enhanced analog performance for both production line and R&D applications, with improved performance ensuring faster throughput and greater design margins.
Key Features
- Wide dynamic range: 147 dB (typical)
- Fast measurement speed: 3 ms (401 points)
- Low trace noise: 0.0015 dBrms (10 kHz IFBW)
- High temperature stability: 0.005 dB/°C
- Wide source power range: -90 to +15 dBm
- Intuitive touch-based GUI on 12.1" high-resolution display
- Up to 40-port capability with E5092A test sets
- 2 or 4-port built-in configuration
Applications
- Amplifier characterization
- Filter and duplexer testing
- Antenna measurements
- Cable and connector analysis
- Mixer characterization
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Form Factor | Benchtop |
