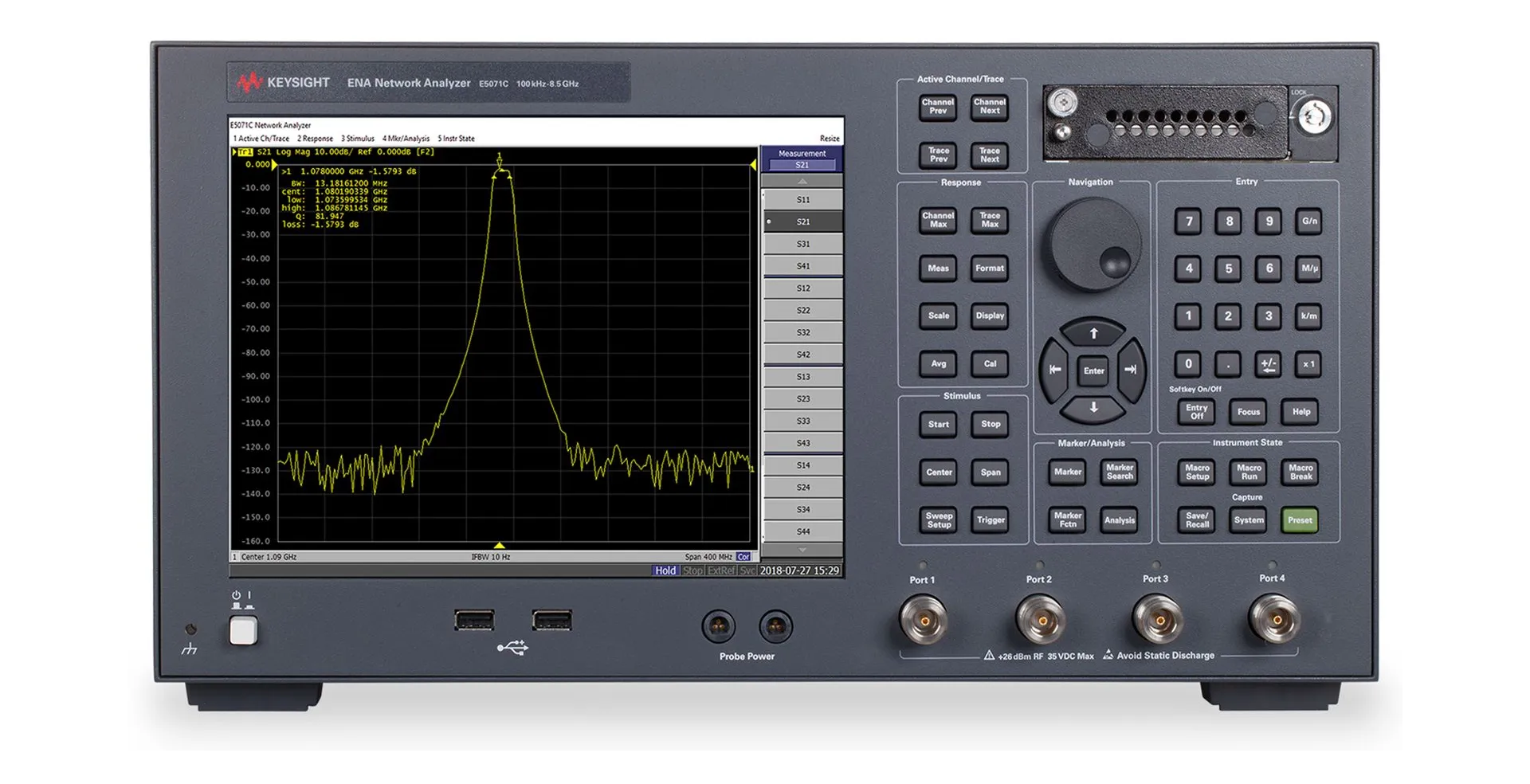

Keysight E5071C Vector Network Analyzer
Keysight E5071C is a versatile vector network analyzer with 9 kHz to 20 GHz frequency range, 123 dB dynamic range, and fast 8 ms full 2-port calibration.
Product details
| Model | E5071C |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight E5071C is a high-performance ENA vector network analyzer with frequency coverage from 9 kHz to 20 GHz. Designed for manufacturing and R&D engineers, the E5071C offers the highest RF performance and fastest measurement speed in its class, with versatile functions and flexible configurations to match various applications.
The E5071C supports flexible port configurations and allows selection of frequency ranges, ports, and bias tees to suit your testing needs. The analyzer provides full upgradability across all options without changing the serial number, ensuring protection of your investment as requirements evolve.
Key Features
- Frequency range: 9 kHz to 20 GHz with 2- or 4-port test set options
- Dynamic range: Greater than 123 dB
- Low trace noise: 0.004 dB rms at 70 kHz IF bandwidth
- Fast measurement speed: 8 msec for full 2-port calibration at 401 points
- High temperature stability: 0.005 dB/°C
- Balanced measurements (4-port option)
- Enhanced TDR measurement option
- Output power: 10 dBm
- Harmonics: -25 dBc
Applications
- RF component and circuit evaluation
- Manufacturing test and production validation
- Research and development for frequency-dependent devices
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Form Factor | Benchtop |
