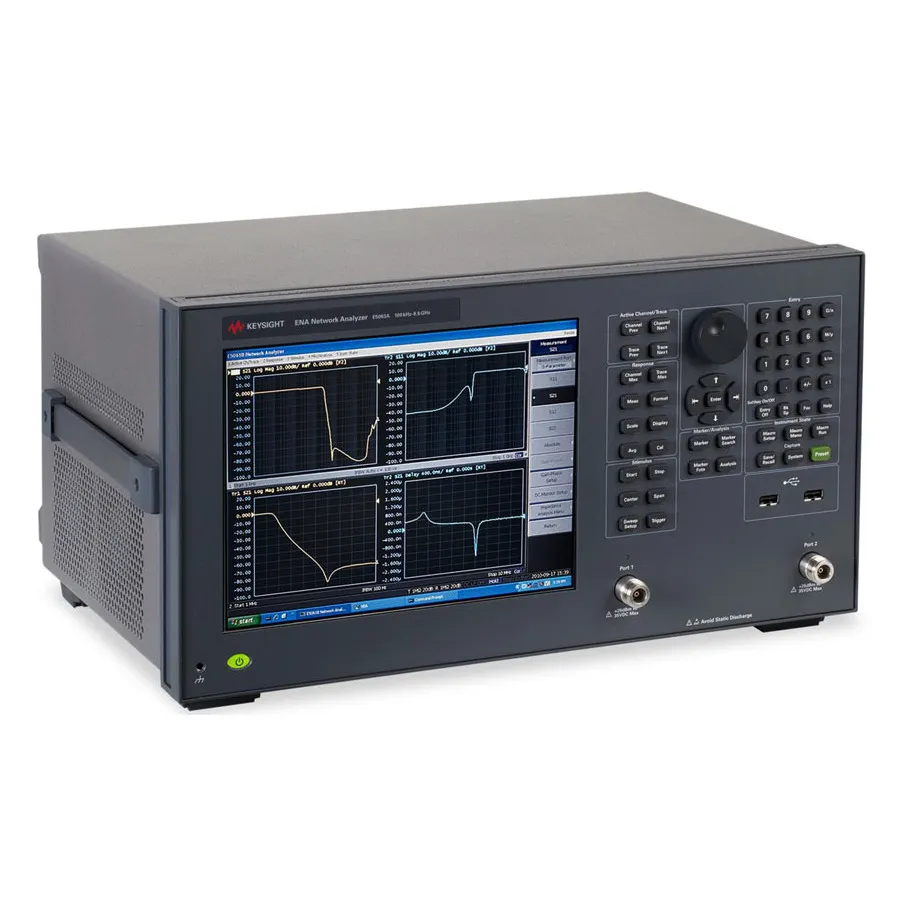

Keysight E5063A ENA Vector Network Analyzer

Overview

The Keysight E5063A ENA series is a cost-effective benchtop vector network analyzer (VNA) designed for testing passive components like antennas, filters, cables, and connectors up to 18 GHz. It offers an optimal balance of price and performance with best-in-class trace noise performance and excellent dynamic range for accurate measurements of low-loss devices.

Utilizing the industry-standard ENA Series measurement framework, the E5063A enhances efficiency and productivity. The analyzer features a 10.4-inch multi-touchscreen display, Windows 10 operating system, and comprehensive calibration capabilities including SOLT, ECal, and TRL calibration methods. Frequency upgrade options allow you to scale from 500 MHz up to 18 GHz as your testing needs evolve.

Key Features

• Frequency range: 100 kHz to 18 GHz (configuration dependent)
• Trace Noise: 0.005 dBrms (spec), 0.002 dBrms (typical)
• Dynamic Range: 117 dB (spec), 122 dB (typical)
• 2-port, 50-ohm S-parameter test set
• Stability: 0.01 dB/Celsius
• Source power: -20 to 0 dBm
• Up to 10,001 points maximum (NOP)
• Up to 32 channels maximum
• 10.4-inch multi-touchscreen display
• Interfaces: LAN, USB (front 2, rear 4), USBTMC; Optional GPIB and Handler I/O
• Windows 10 operating system
• Three-year warranty

Applications

• Antenna testing for smartphones, cellular base stations, WLAN, and wireless communication devices
• RF passive component characterization including filters, cables, connectors, attenuators, couplers, isolators, and dividers
• Impedance testing of PCBs
• Wireless power transfer coils and resonator analysis
• Dielectric material characterization

Included Accessories

• Installation guide
• CD ROM with IO libraries
• Power cable
• Calibration certificate
