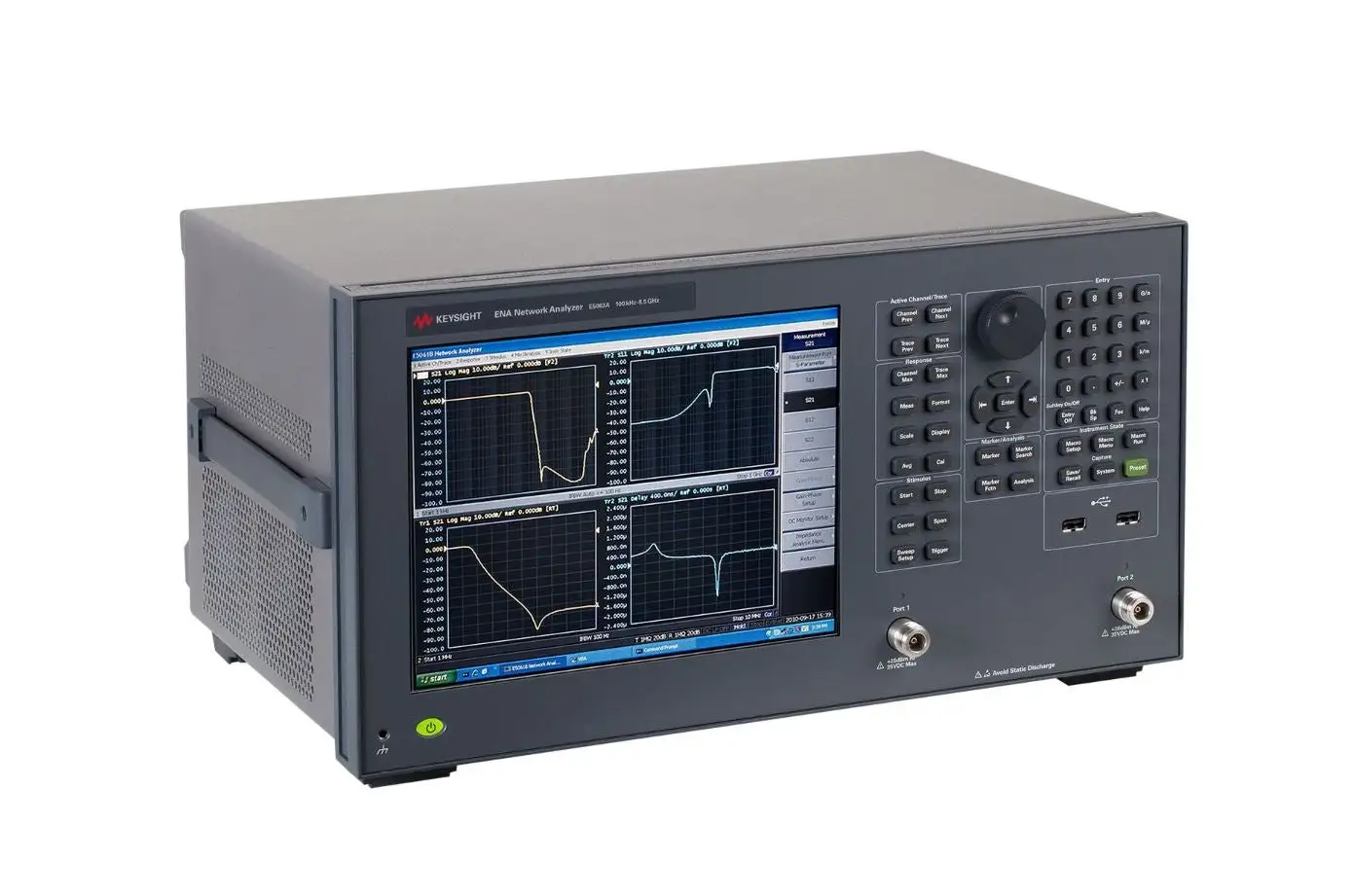

Keysight E5063A Vector Network Analyzer
Request a quote
Keysight E5063A benchtop vector network analyzer for RF component testing up to 18 GHz with 117 dB dynamic range, 2-port 50Ω test set, and time domain analysis options.
Product details
| Model | E5063A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight E5063A ENA is an affordable benchtop vector network analyzer designed for testing simple passive RF components such as antennas, filters, cables, and connectors up to 18 GHz. It provides an excellent balance between performance and cost, making it ideal for education, design, and manufacturing environments. The E5063A leverages the consistent measurement framework of the industry-standard ENA Series to boost efficiency and productivity.
Key Features
- Frequency coverage: 100 kHz to 18 GHz (depending on configuration option)
- Versatile 2-port 50Ω S-parameter test set for diverse component testing
- Time domain analysis capability with fixture simulator (Option 010)
- Dedicated graphical user interface for PCB design and test (Option 011)
- Dynamic range: 117 dB (specification), 122 dB (typical)
- Trace noise: 0.005 dB rms (specification), 0.002 dB rms (typical)
- Temperature stability: 0.01 dB/°C
- Multiple interface options: LAN, USB, GPIB, Handler I/O
Applications
- Smartphone and cellular base station antenna characterization
- RF passive component testing: filters, cables, connectors, attenuators, couplers, isolators, dividers
- Impedance testing of printed circuit boards (PCB)
- Wireless power transfer coil and resonator analysis
- Dielectric material characterization
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Form Factor | Benchtop |
