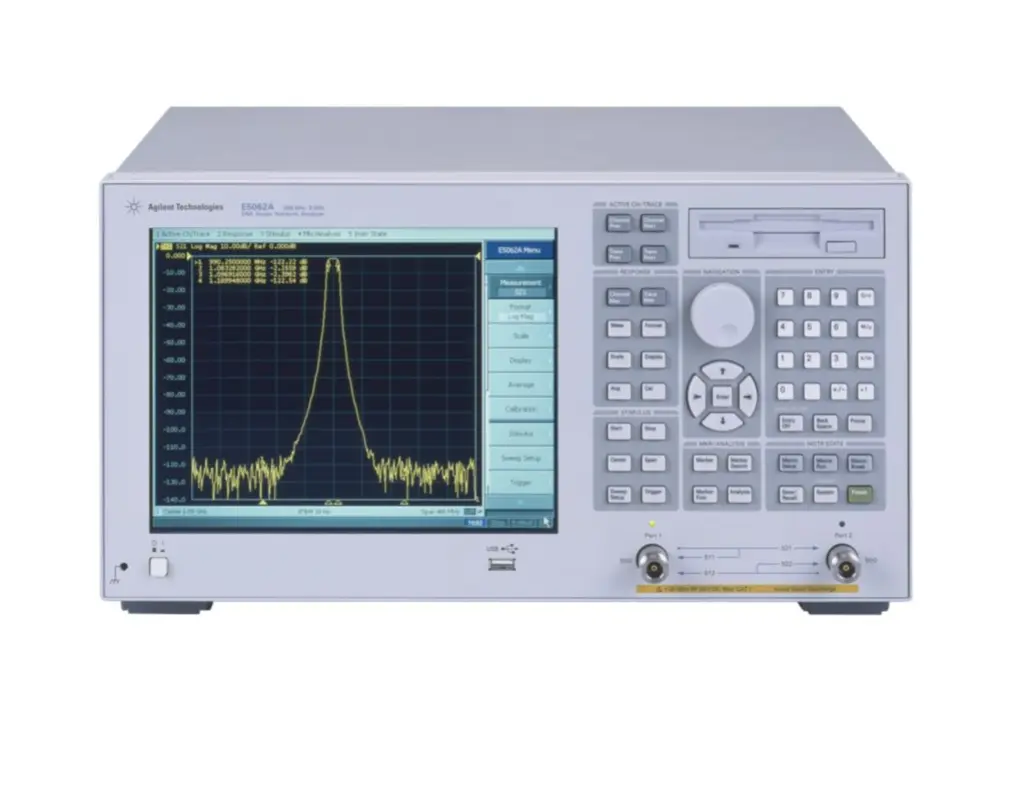

Keysight E5062A Vector Network Analyzer
Request a quote
General-purpose vector network analyzer with 300 kHz to 3 GHz range, integrated T/R or S-parameter test set, 50/75 ohm impedance options, and 120 dB dynamic range.
Product details
| Model | E5062A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight E5062A is a general-purpose vector network analyzer providing reliable S-parameter measurements with an intuitive user interface. Operating from 300 kHz to 3 GHz, the instrument features flexible test port impedance options and delivers 120 dB dynamic range with low trace noise, making it suitable for component characterization and circuit evaluation in research and production environments.
Key Features
- Integrated T/R or S-parameter test set architecture
- Selectable test port impedance: 50 or 75 ohm
- Full frequency coverage from 300 kHz to 3 GHz
- Intuitive user interface for S-parameter measurements
- Built-in Visual Basic for Applications (VBA) for custom automation and control
- 0.005 dB RMS trace noise for high-precision measurements
Applications
- Component S-parameter characterization and validation
- Circuit evaluation and network analysis
- R&D testing and component qualification
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Form Factor | Benchtop |
