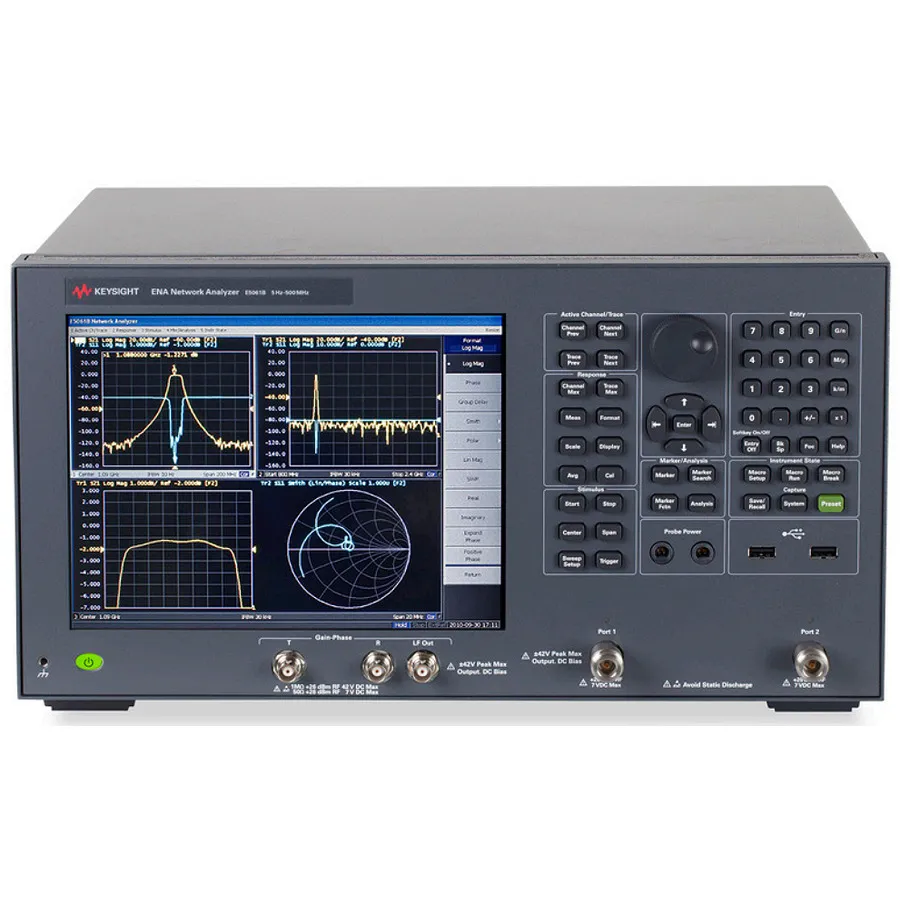

Keysight E5061B/020/3L5/722/732 Vector Network Analyzer
Request a quote
Vector network analyzer with 5 Hz to 3 GHz range, 4-channel/4-trace measurement, 1 MΩ high-impedance inputs, and integrated DC bias source.
Product details
| Model | E5061B/020/3L5/722/732 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight E5061B with 3L5 option is a benchtop vector network analyzer designed for comprehensive LF-to-RF network and impedance measurements in R&D environments. The instrument operates from 5 Hz to 3 GHz and integrates a 50 ohm S-parameter test set with a gain-phase test port for high-impedance probing across both RF and low-frequency domains.
Key Features
- Integrated 50 ohm S-parameter test set for RF measurement
- Gain-phase test port with 1 MΩ high-impedance inputs for low-frequency in-circuit probing
- DC bias source for measuring biased devices up to ±40 Vdc
- Four-channel/four-trace measurement architecture
- High-impedance probing for minimal circuit loading
- Internal hard disk drive with Windows 10 for data storage and instrument state recall
Applications
- Component and circuit characterization in R&D environments
- RF filter, amplifier, and antenna measurements
- Low-frequency impedance and control loop analysis
- Broadband device evaluation (cables, transformers, power delivery networks)
- Amplifier characterization (CMRR, PSRR, PDN measurements)
- High-impedance measurements on sensitive circuits
Included Accessories
- Installation guide
- CD-ROM IO libraries
- Power cable
- Certificate of calibration
Specifications
| Number of Ports | 2 |
| Maximum Frequency | 3 GHz |
| Minimum Frequency | 5 Hz |
| Type | Benchtop |
| Dynamic Range | 120 dB |
| Series | ENA Series |
| Input Impedance | 50 Ω |
| Interface | USB, LAN |
