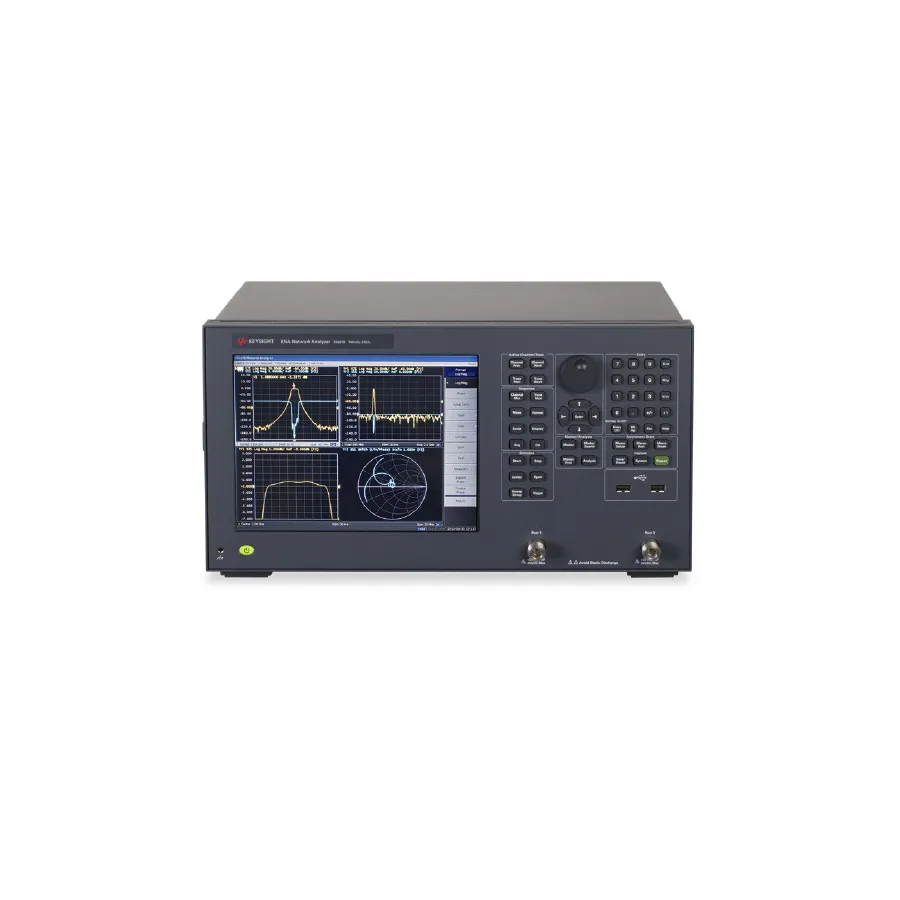

Keysight E5061B ENA Vector Network Analyzer

Overview

The Keysight E5061B ENA Vector Network Analyzer with S-parameter test set is a benchtop RF network analyzer providing advanced 1- and 2-port network analysis for demanding RF applications. The S-parameter test set enables both forward and reverse measurements on the device under test, which are essential for determining all four S-parameters. With proven RF performance integrated into a digital platform with advanced digital processing capabilities, this analyzer is optimized for testing RF components including cellular BTS filters and antennas, MRI coils, RFIDs, and CATV components with superior measurement accuracy.

Key Features

• S-parameter test set for comprehensive 2-port S-parameter measurements
• Forward and reverse measurement capability on device under test
• Frequency range: 100 kHz to 1.5 GHz
• Dynamic range: >120 dB (at 1 MHz to 1.5 GHz, IFBW = 10 Hz)
• Source output level: -45 to +10 dBm (at 300 kHz to 1.5/3 GHz)
• Trace noise: 5 mdBrms (IFBW = 3 kHz)
• Frequency stability: ±7 ppm ±1 mHz
• 4-channel/4-trace measurement capability
• User-definable points per sweep: 2 to 1601
• Internal hard disk drive with Windows 10 OS for data storage and calibration recall

Applications

• Advanced RF component characterization and validation
• Wireless communications filter and antenna design optimization
• Aerospace and defense RF system testing
• Computing and medical device network analysis
• Automotive RF component development
• CATV amplifier and filter characterization
• RFID component design and validation
• MRI coil impedance and coupling measurements

Included Accessories

• Installation guide
• CD-ROM with IO libraries
• Power cable
• Certificate of calibration
