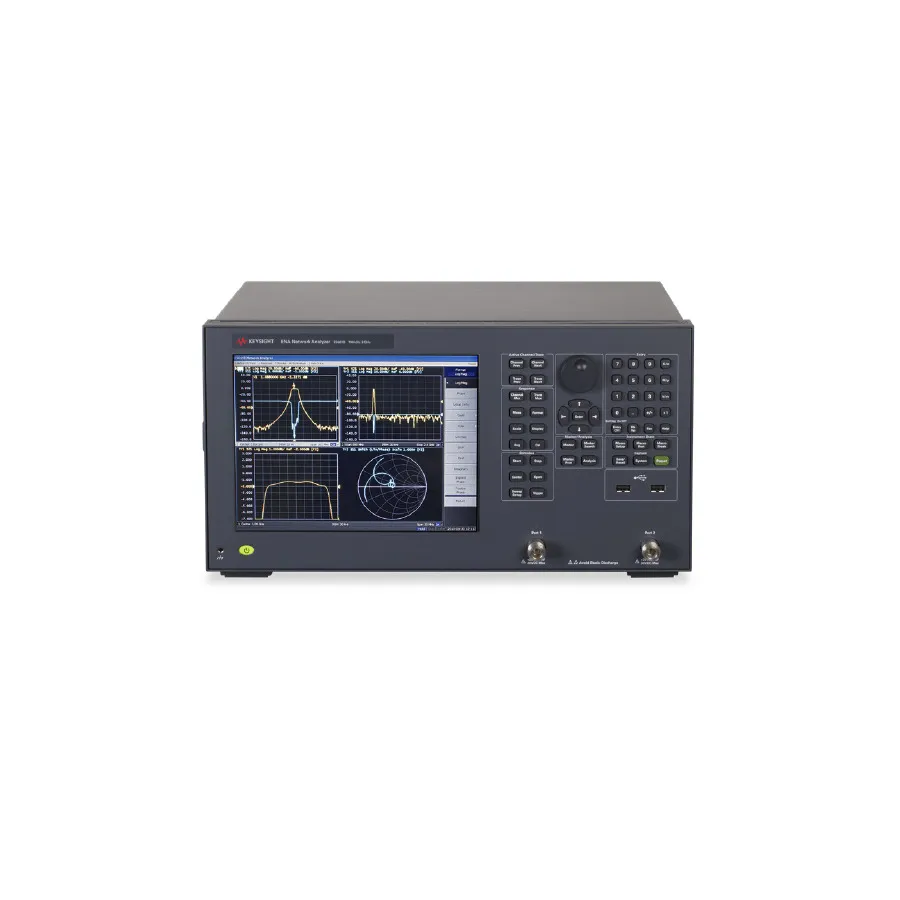

Keysight E5061B ENA Vector Network Analyzer

Overview

The Keysight E5061B ENA Vector Network Analyzer is a benchtop RF network analyzer delivering high-performance 1- and 2-port network analysis at an affordable price. It combines proven RF performance with advanced digital processing in a compact footprint, making it ideal for testing RF components including cellular BTS filters and antennas, MRI coils, RFIDs, and CATV components. This model features a Transmission/Reflection (T/R) test set with 100 kHz to 3 GHz frequency range and 75 Ω system impedance, supporting cost-effective measurements without the need to reposition devices.

Key Features

• 1- and 2-port network analysis capability
• Frequency range: 100 kHz to 3 GHz
• Dynamic range: >120 dB (at 1 MHz to 3 GHz, IFBW = 10 Hz)
• Source output level: -45 to +10 dBm (at 300 kHz to 1.5/3 GHz)
• Trace noise: 5 mdBrms (IFBW = 3 kHz)
• Frequency stability: ±7 ppm ±1 mHz
• 4-channel/4-trace measurement capability
• User-definable points per sweep: 2 to 1601
• Internal hard disk drive with Windows 10 OS for data storage and instrument state recall
• Transmission/Reflection test set for efficient one-port and reflection measurements

Applications

• Wireless communications filter and component testing
• Aerospace and defense RF measurements
• Computing and medical device analysis
• Automotive component characterization
• CATV component testing and validation
• Cellular BTS filter and antenna optimization
• RFID tag and reader design validation
• MRI coil performance assessment

Included Accessories

• Installation guide
• CD-ROM with IO libraries
• Power cable
• Certificate of calibration
