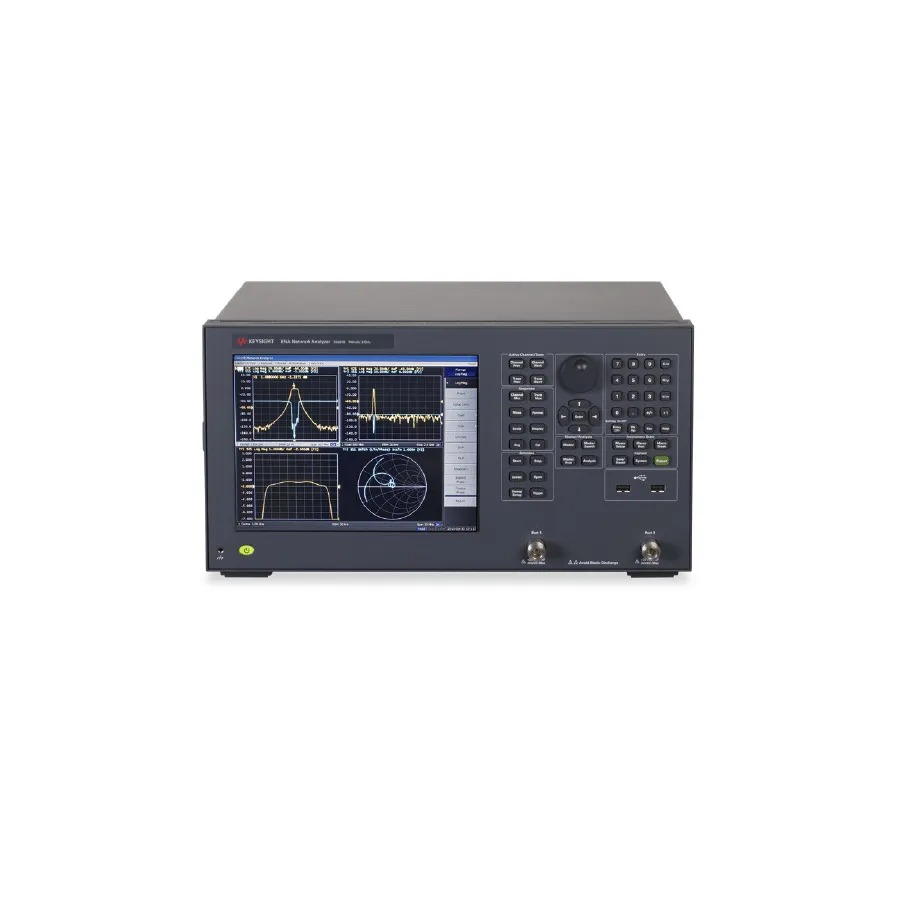

Keysight E5061B/020/117/722/732 Vector Network Analyzer

Overview

The Keysight E5061B is part of the ENA Series network analyzers, designed to meet diverse measurement requirements for electronic components and circuits. This configuration with transmission-reflection (T/R) test set and 100 kHz to 1.5 GHz capability is ideal for RF component testing, including cellular filters, antennas, and passive components.

Key Features

• Frequency range: 100 kHz to 1.5 GHz
• Transmission-reflection (T/R) test set configuration for cost-effective analysis
• System impedance: 75 Ω
• Source output level: -45 to +10 dBm
• Dynamic range: >120 dB
• Trace noise: 5 mdBrms (IFBW=3 kHz)
• Frequency stability: ±7 ppm ±1 mHz
• 4-channel, 4-trace capability
• User-definable sweep points: 2 to 1601
• Internal hard disk drive with Windows 10 OS

Transmission/Reflection (T/R) Test Set

The T/R test set configuration provides cost-effective network analysis by routing RF power from port one while port two functions as a receiver. While this design requires device rotation for reverse transmission measurements and supports only response and one-port calibrations, it offers excellent value for component evaluation and manufacturing test.

Applications

• RF component testing (cellular BTS filters, antennas, MRI coils)
• RFID and CATV component characterization
• Wireless communications and aerospace RF component evaluation
• Medical and automotive RF component testing
• Manufacturing and production test environments

Included Accessories

• Installation guide
• CD-ROM with IO libraries
• Power cable
• Certificate of calibration
