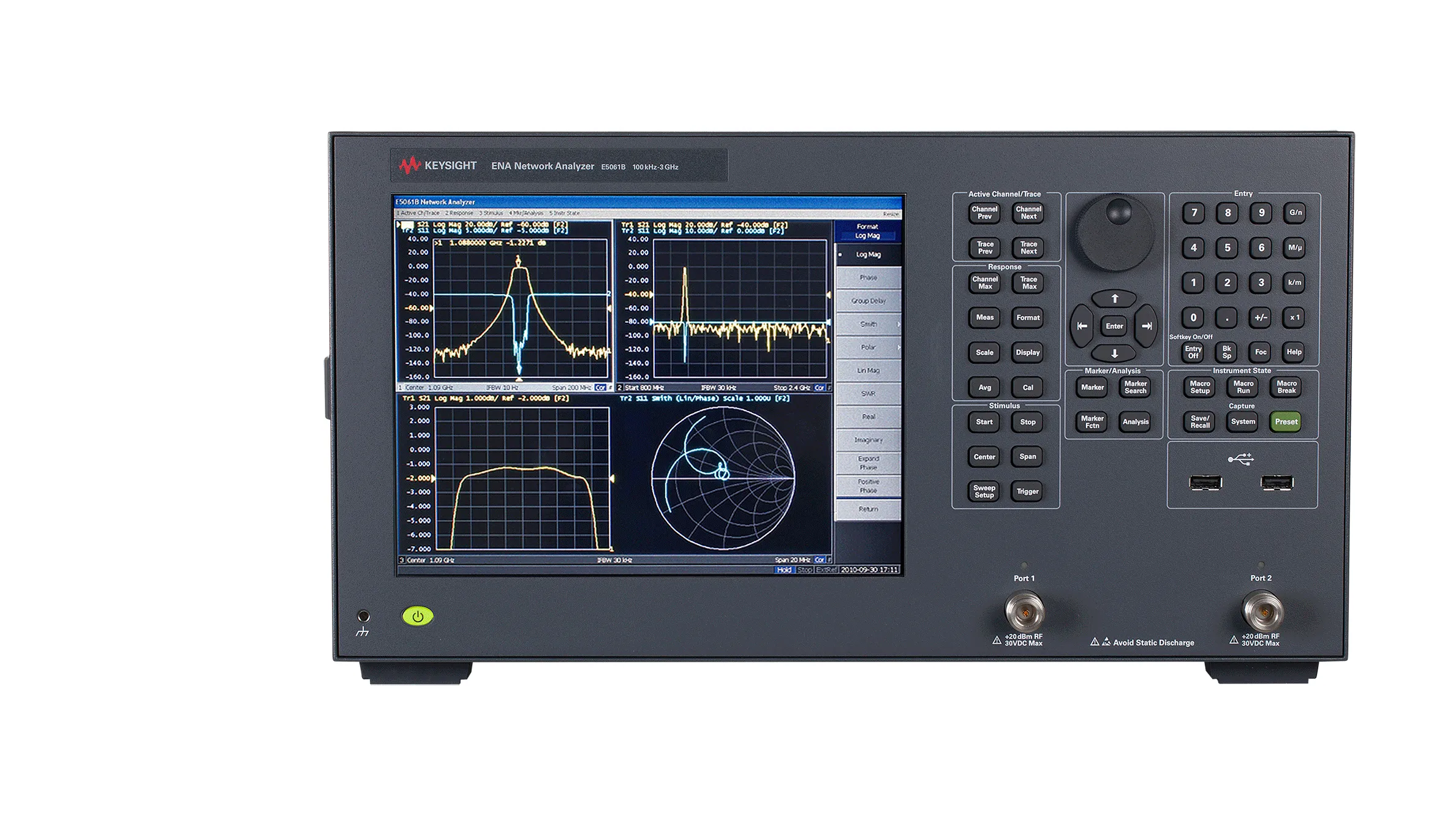

Keysight E5061B ENA Vector Network Analyzer
Request a quote
Keysight E5061B is a vector network analyzer measuring S-parameters and impedance from 5 Hz to 3 GHz with 120 dB dynamic range and 9 ms sweep speed.
Product details
| Model | E5061B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight E5061B is a member of the industry-standard ENA Series vector network analyzers. It provides frequency-domain device analysis from DC to 3 GHz, addressing a broad range of measurement needs for electronic components and circuits. The analyzer is suitable for applications in wireless communications, aerospace and defense, computer, medical, automotive, and CATV industries.
Key Features
- Frequency coverage from 5 Hz to 3 GHz for low-frequency to RF measurements
- Dynamic range of 120 dB for precise component characterization
- Output power of 10 dBm for adequate signal levels
- Dual-port configuration with selectable 50 or 75 ohm impedance
- Fast sweep speed of 9 ms at 201 points for efficient testing
- Transmission/reflection and S-parameter test set options
- Optional impedance analysis for component characterization
- Optional wireless power transfer analysis
- Optional time domain and fault location analysis
- LF-RF option (5 Hz to 3 GHz) with built-in DC bias source
- Windows 10 operating system
Applications
- Cable and connector characterization
- Amplifier evaluation
- Filter design and measurement
- Resonator and coil analysis
- DC-DC converter and power distribution network (PDN) characterization
- Antenna and RFID measurement
- LCR component testing and impedance analysis
- Wireless power transfer efficiency measurement
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | DC <= 1kHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Form Factor | Benchtop |
