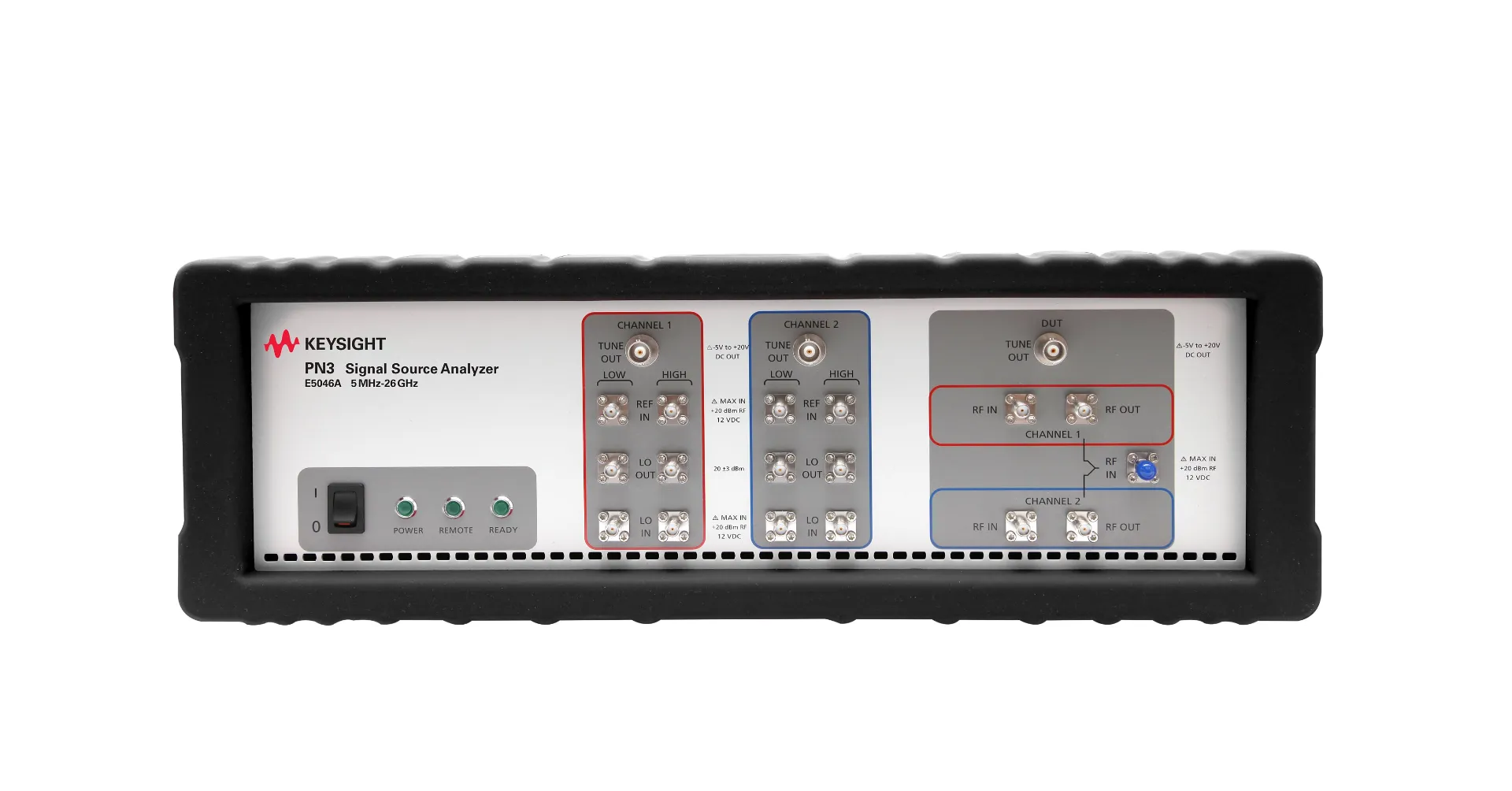

Keysight E5046A Signal Source Analyzer
Request a quote
Keysight E5046A is a compact signal source analyzer measuring phase and amplitude noise of signal sources up to 26 GHz with -15 to +20 dBm input power.
Product details
| Model | E5046A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight E5046A PN3 is a compact signal source analyzer designed to measure phase and amplitude noise of signal sources up to 26 GHz. With an input power range of -15 to +20 dBm and analysis capabilities from 0.01 Hz to 100 MHz, this fully contained unit provides comprehensive signal characterization in a compact form factor.
Key Features
- Frequency coverage up to 26 GHz
- Phase and amplitude noise measurement
- Input power range: -15 to +20 dBm
- Analysis range: 0.01 Hz to 100 MHz
- Compact design (10 kg)
Applications
- Measuring phase and amplitude noise of signal sources
- Evaluating pulsed signals' phase noise
- Automated testing in production lines
- Analyzing frequency and power transients, modulations, and long-term signal behavior
- Characterizing additive phase noise of amplifiers, transmitters, and mixers
- Time stability analysis of clocks
Specifications
| Frequency Range | Up to 26 GHz |
| Input Power Range | -15 to +20 dBm |
| Analysis Range | 0.01 Hz to 100 MHz |
| Weight | 10 kg |
| Phase Noise Measurement | Yes |
| Amplitude Noise Measurement | Yes |
