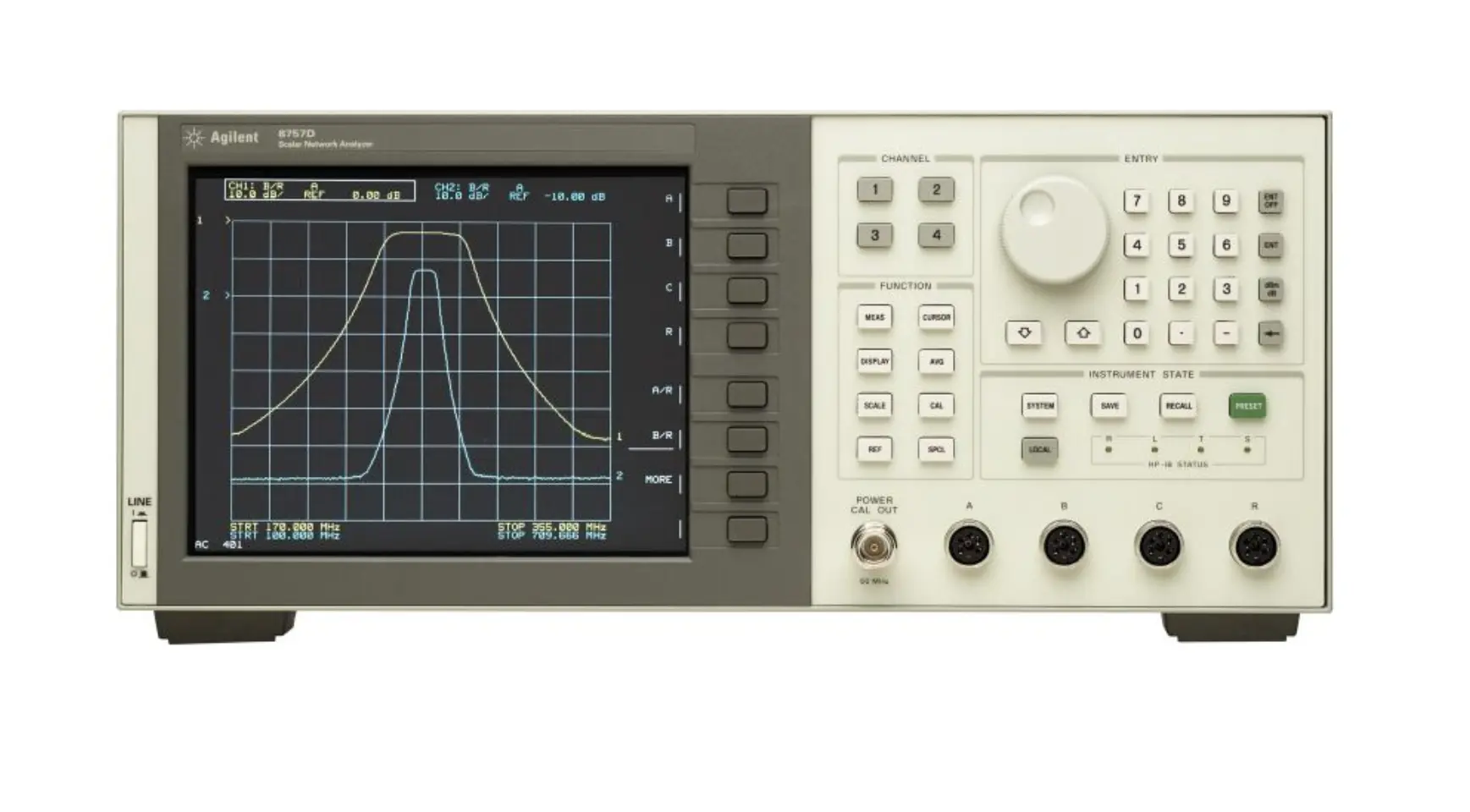

Keysight 8757D Scalar Network Analyzer
Request a quote
Keysight 8757D scalar network analyzer measures insertion loss, gain, return loss, SWR, and power with up to 83 dB dynamic range and built-in limit testing.
Product details
| Model | 8757D |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight 8757D is a scalar network analyzer that measures insertion loss, gain, return loss, SWR, and power quickly and accurately. With high-performance detectors and directional bridges, it provides exceptional measurement capabilities. When configured with a Keysight PSG signal generator and printer, the system provides comprehensive network analysis.
Key Features
- Up to 83 dB dynamic range (extendable with PSG high power option)
- Built-in limit testing for quick pass/fail decisions
- Color display
- Buffered plotter/printer output
- External disc and internal register save/recall of test setups
- Optional internal power meter calibrator and precision detectors for near power meter accuracy
- Uses 85025A, 85037A Detectors
Applications
- Network component testing and characterization
- Production testing and quality assurance
- System integration and calibration
Specifications
| High Frequency (range) | 85GHz < |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | Type N-Female (Plug) |
