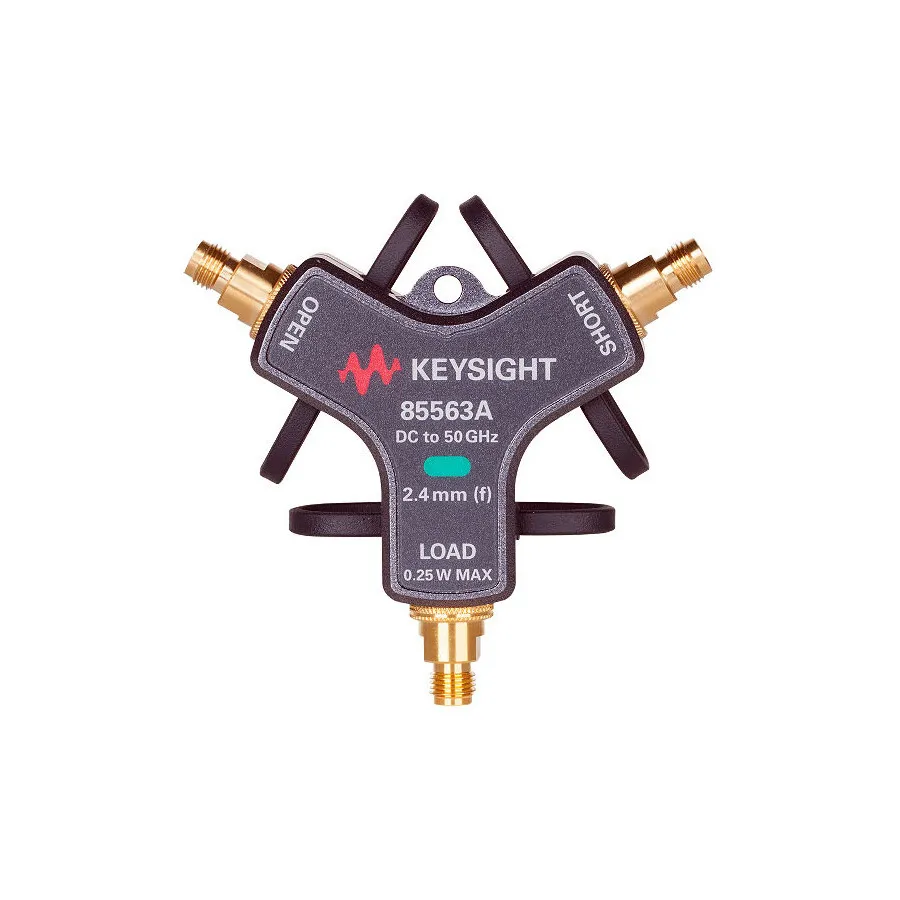

Keysight 85563A Mechanical Calibration Kit
Request a quote
Keysight 85563A is a 3-in-1 OSL calibration kit for network analyzers with DC to 50 GHz frequency coverage and 2.4 mm female connectors.
Product details
| Model | 85563A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight 85563A is a 3-in-1 mechanical calibration kit designed to calibrate network analyzers up to 50 GHz. It combines an open, short, and load standard in a compact unit that is small, easy to handle, and lightweight.
Key Features
- DC to 50 GHz frequency range
- 2.4 mm female connectors
- 3-in-1 design: open, short, and load precision standards
- Compact, lightweight construction
- Adapter options available for connector sex conversion
Included Accessories
- Offset open and short (female)
- Broadband termination (female)
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Connector Type | 2.4mm-Female (Plug) |
| Low Frequency (range) | DC <= 1kHz |
| Type | Mechanical OSL |
| Frequency | DC to 50GHz |
| Connector Type | 2.4mm(f) |
| Number of Ports | NA |
