Keysight 85133H Cable
Request a quote
Keysight 85133H is a 63 cm flexible test cable with 2.4 mm female-to-male connectors, DC to 50 GHz frequency range, and stable phase performance.
Product details
| Model | 85133H |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview

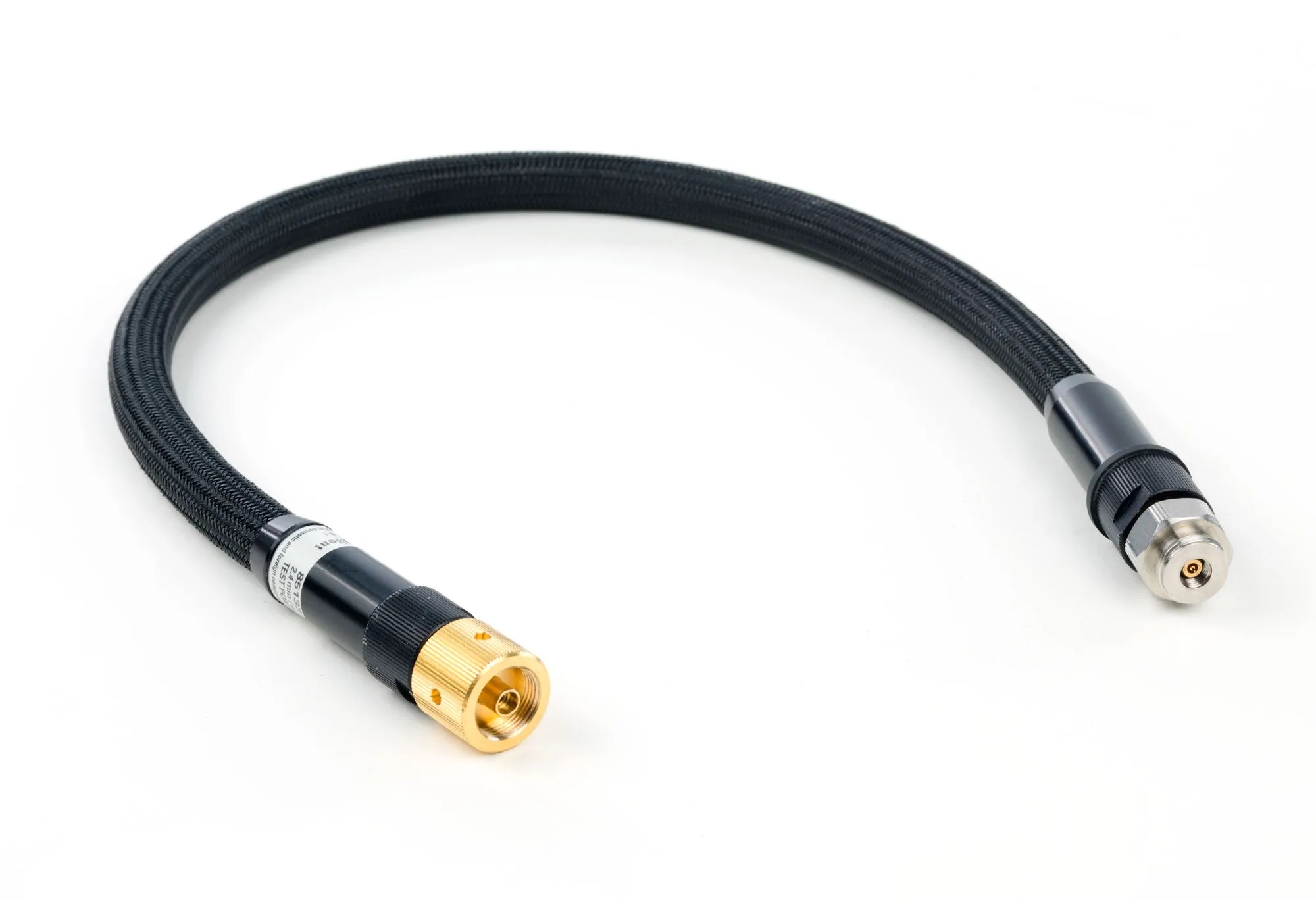

The Keysight 85133H is a 63 cm flexible test cable designed for vector network analyzer test port connections. It features a 2.4 mm female-to-male connector configuration, making it suitable for direct connection between the analyzer test port and various device-under-test interfaces.
Key Features
- Single cable configuration for simplified connections
- Frequency range: DC to 50 GHz
- Return loss: ≥ 15 dB
- Phase stability (90° bend): < 0.08 dB magnitude, < 0.08°f + 0.5° phase
- Phase stability (random use): < 0.04 dB magnitude, < 0.04°f + 0.5° phase
- Minimum bend radius: 6.352 cm (2.5 inches)
Applications
- RF and microwave testing up to 50 GHz
- Direct test port to device connections
- Phase-sensitive measurements and calibrations
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Connector Type | 2.4mm-Female (Plug) |
| Low Frequency (range) | DC <= 1kHz |
