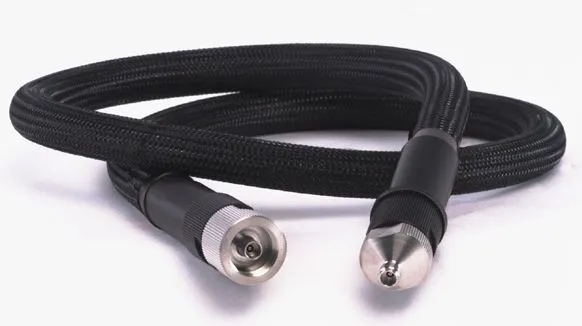

Keysight 85133E Test Port Cable
Request a quote
Keysight 85133E flexible test port cable, 97 cm length with superior phase stability, 50 GHz range, and specialized 2.4mm connectors for precision testing.
Product details
| Model | 85133E |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight 85133E is a flexible test port cable engineered for applications requiring extended length with excellent phase stability. At 97 cm, it offers maximum reach while maintaining superior performance characteristics across the DC to 50 GHz frequency range. The cable features a 2.4 mm female connector (slotted) for the test port end and a PSC-2.4 mm female connector (slotless) for device connections.
Key Features
- Cable length: 97 cm (38 in) with 1.125 m electrical length
- Frequency range: DC to 50 GHz with return loss ≥15 dB
- Flexible cable design for improved routing and repositioning
- 2.4 mm female to PSC-2.4 mm female connectors with slotted/slotless design
- Insertion loss: 0.446 + 0.017F + 0.456√F dB (test port), 4.52 dB @ 50 GHz (device)
- Superior phase stability with 90° bend (2.5 in radius): <0.15 dB magnitude, 0.17 × f + 0.5° phase
Applications
- Network analyzer test port connections requiring extended cable length
- RF and microwave component testing and characterization
- Precision measurement systems with phase-critical applications
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | DC <= 1kHz |
