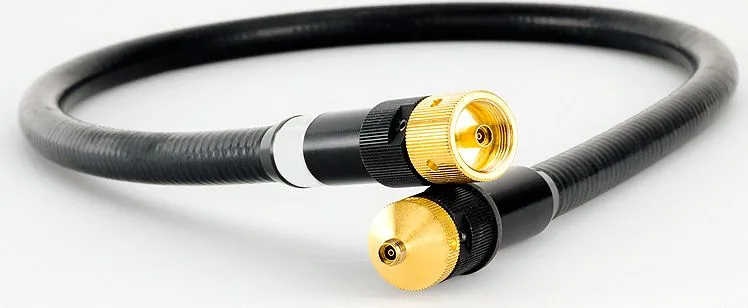

Keysight 85131E Flexible Test Cable
Request a quote
Keysight 85131E 96.5 cm flexible test port cable with 3.5 mm to PSC-3.5 mm connectors, designed for phase stability with connected devices up to 26.5 GHz.
Product details
| Model | 85131E |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight 85131E is a 96.5 cm (38 in) flexible test port cable designed to achieve phase stability when a device under test is connected directly to the network analyzer test port with an adapter. This longer cable configuration accommodates device placement while maintaining measurement performance.
Key Features
- 96.5 cm (38 inch) flexible cable for extended device reach
- 3.5 mm female to PSC-3.5 mm female connectors
- Frequency range: dc to 26.5 GHz
- Return loss: 16 dB or greater
- Excellent phase stability characteristics
- Designed for direct DUT connection with adapters
Applications
- Vector network analyzer testing with device mounting flexibility
- Phase-stable RF measurements
- Microwave device characterization
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Connector Type | 3.5mm-Female (Plug) |
| Low Frequency (range) | DC <= 1kHz |
