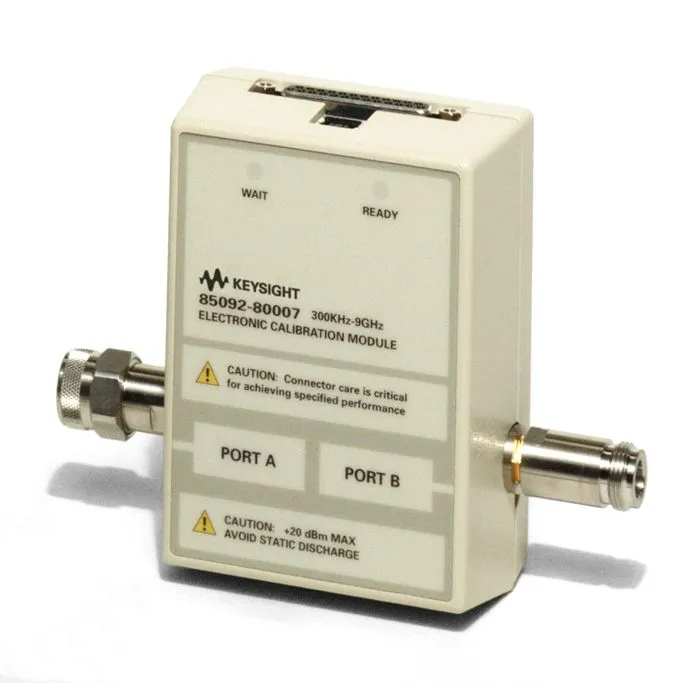

Keysight 85092C RF Electronic Calibration Module

Overview

The Keysight 85092C is an RF electronic calibration (ECal) module that provides fast, easy, and accurate two-port calibration for vector network analyzers. It is compatible with PNA and ENA Series instruments via USB interface and features a Type-N 50-Ω connector for direct connection to the analyzer.

Compared to mechanical calibration kits, the 85092C reduces calibration time to less than half while maintaining comparable accuracy with NIST traceable precision. The automated process requires minimal operator interaction, reducing the risk of errors inherent in manual mechanical methods.

Key Features

• 300 kHz to 9 GHz frequency range
• Fast full two-port calibration with a single connection
• Type-N 50-Ω connector for direct attachment
• USB interface for direct control with PNA and ENA series network analyzers
• NIST traceable accurate calibrations
• Reduced connector wear due to fewer calibration connections
• Reliable solid-state switching for consistent performance
• Simple non-insertable device calibration

Applications

• Calibration of PNA and ENA Series network analyzers
• Production test environments requiring frequent recalibration
• Reduction of connector wear in high-use measurement systems
• Fast verification and qualification measurements

Included Accessories

• Type-N 50-Ω connectors
• Optional adapter configurations with male/female connector options
• Optional wooden storage box
