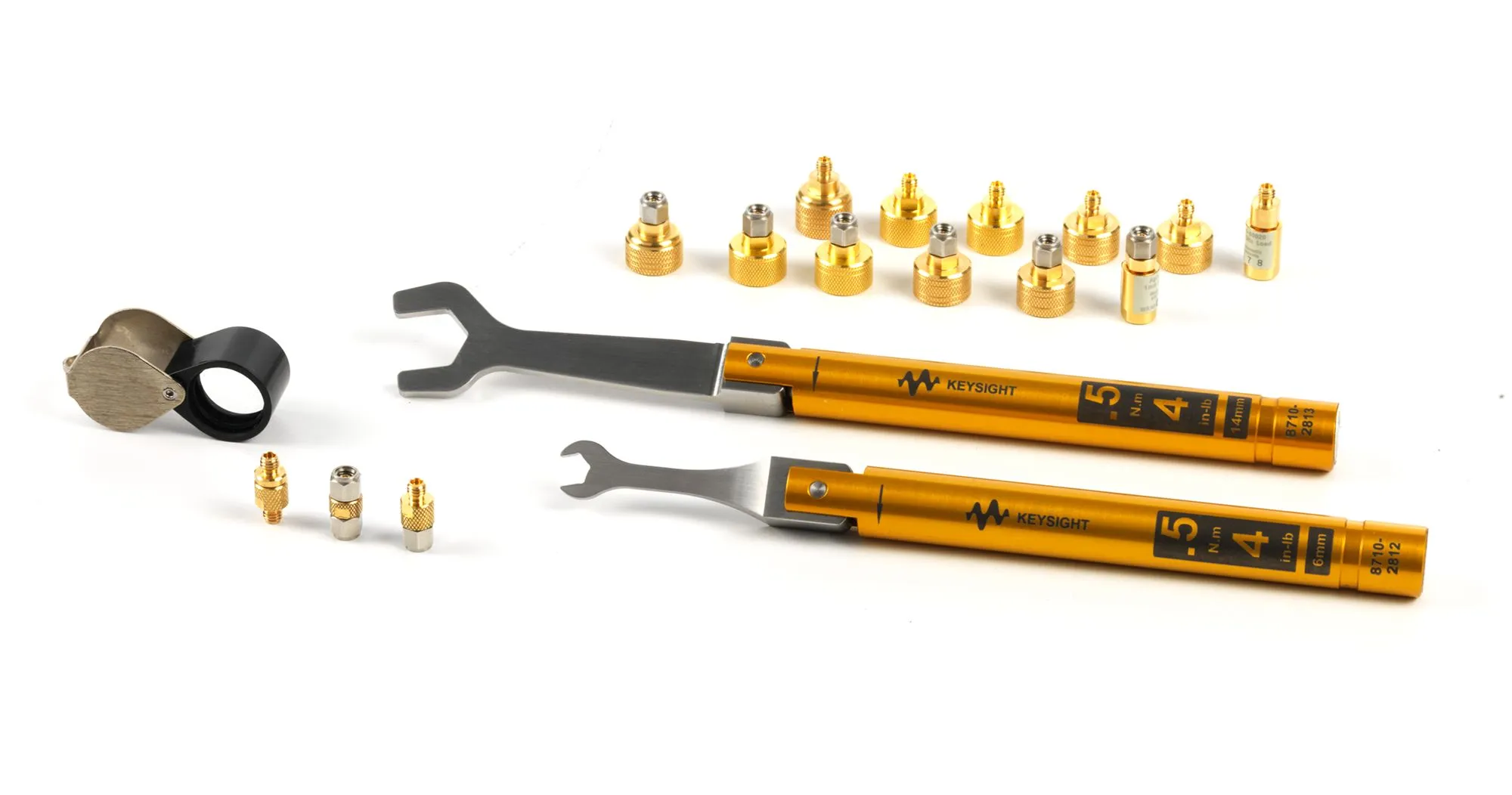

Keysight 85059B 1.0mm Precision Calibration Kit
Request a quote
Keysight 85059B is a 1.0mm precision calibration kit for VNA systems operating DC to 120 GHz with traceable calibration standards.
Product details
| Model | 85059B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight 85059B is a 1.0 mm calibration kit designed for vector network analyzer systems operating from DC to 120 GHz. The opens, shorts, and loads in this kit are optimized to provide accurate and traceable calibrations over the specified frequency range. This kit serves as the calibration component of the 85059A replacement set (paired with the 85059V verification kit).
Key Features
- Frequency range: DC to 120 GHz
- 1.0 mm connector standard
- Precision opens, shorts, and loads
- Commercial calibration certificate included
- Complete set of assembly and maintenance tools
Applications
- Vector network analyzer calibration
- RF and microwave component testing
- High-frequency measurement system calibration
Included Accessories
- One pair (male and female) of offset open standards
- One pair (male and female) of lowband load standard
- Four pairs (male and female) of offset short standards
- Three adapters
- Calibration certificate
- Open-end wrench for 6 mm flats
- 4 in-lb torque wrench (6 mm open end, gold handle)
- 4 in-lb torque wrench (14 mm open end, gold handle)
- 10x magnifying glass
- Plastic storage case
Specifications
| High Frequency (range) | 85GHz < |
| Low Frequency (range) | DC <= 1kHz |
| Type | Mechanical OSL |
| Frequency | DC to 120GHz |
| Connector Type | 1.0mm(m/f) |
| Number of Ports | NA |
| Impedance | 50 Ohm |
| Series | 8505xx Series |
