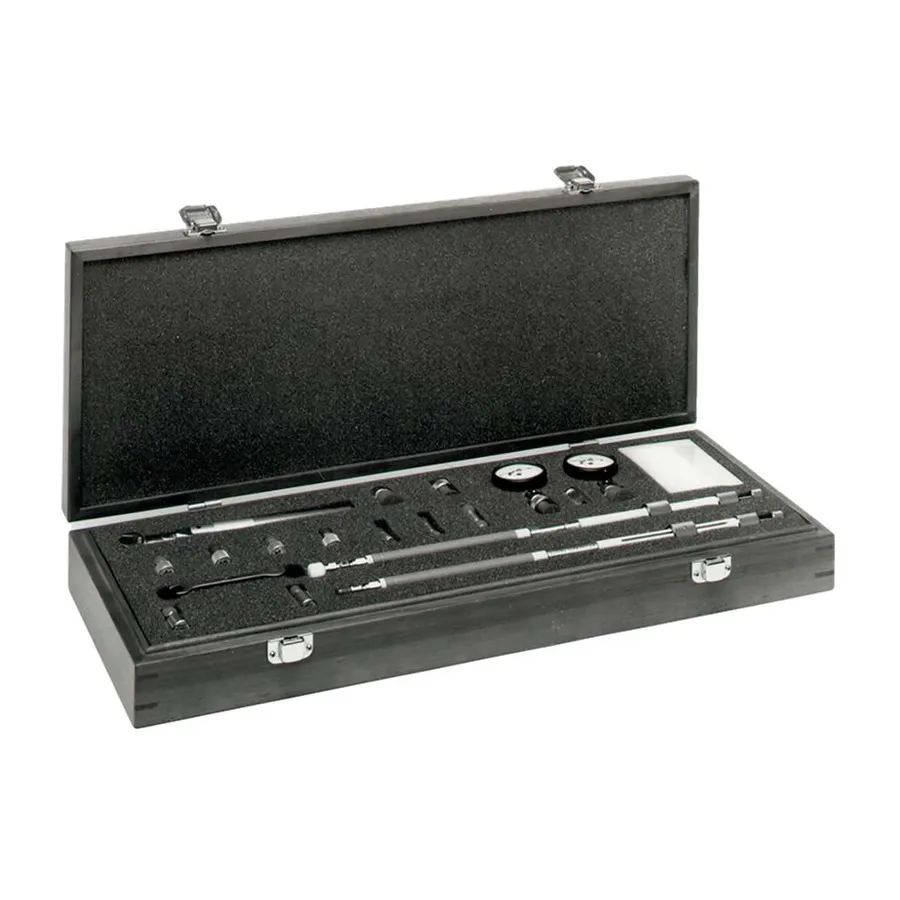

Keysight 85052B Mechanical Calibration Kit
Request a quote
Keysight 85052B is a 3.5 mm mechanical calibration kit covering DC–26.5 GHz with full two-port calibration standards and connector gauges.
Product details
| Model | 85052B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight 85052B is a mechanical calibration kit designed to characterize the systematic errors of Keysight network analyzers at the 3.5 mm interface. Covering DC to 26.5 GHz, the kit includes all precision standards needed for accurate full two-port calibration. The kit comes with a commercial calibration certificate and NIST-traceable measurement data.
Key Features
- Frequency range: DC to 26.5 GHz
- 3.5 mm connector interface (male/female)
- Precision calibration standards for full two-port calibration
- Offset opens, shorts, broadband loads, and sliding load terminations
- 3.5 mm connector gauges for interface verification
- Adapters to change connector sex
- Torque wrenches for proper connection (5/16 in, 90 N-cm)
- Commercial calibration certificate included
Applications
- Network analyzer calibration and error characterization
- Performance verification across DC to 26.5 GHz range
- 3.5 mm port characterization and troubleshooting
Included Accessories
- Calibration kit storage case
- User's and service guide
- Offset opens and shorts
- Broadband loads and sliding load terminations
- 3.5 mm gage sets
- Three 3.5 mm adapters
- Torque wrench (5/16 in, 90 N-cm)
- Centering bead for sliding load measurement
- Open-end wrench
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | DC <= 1kHz |
| Type | Mechanical OSL |
| Frequency | DC to 26.5GHz |
| Connector Type | 3.5mm(m/f) |
| Number of Ports | NA |
| Series | 8505xx Series |
