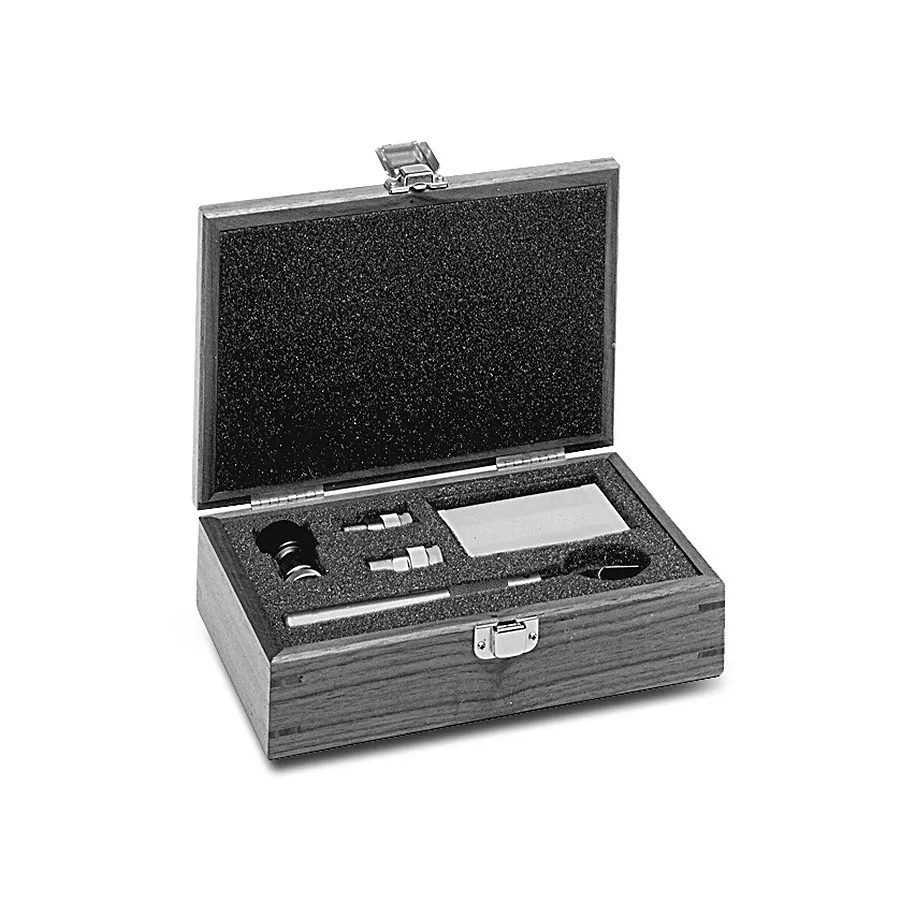

Keysight 85050D Economy Mechanical Calibration Kit
Request a quote
The Keysight 85050D is an economy 7 mm mechanical calibration kit with precision standards, adapters, and torque wrench for 8510C and 8720 systems.
Product details
| Model | 85050D |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight 85050D is an economy-class mechanical calibration kit for Keysight 8510C and 8720 series network analyzers operating in the 7 mm interface. It provides essential calibration standards and accessories for characterizing network analyzer performance at a more economical price point, with connector gages available as a separate option.
Key Features
- Economy-class precision calibration standards
- Broadband loads with >38 dB return loss (DC to 18 GHz)
- Collet-style short and open standards with specified tolerance across frequency bands
- Adapters to change test port sex
- Torque wrench for proper connector connection
- Standards definitions on disk for 8510C
- Connector gages available separately
Applications
- 7 mm network analyzer calibration for 8510C and 8720 systems
- RF/microwave device characterization
- Systematic error measurement and correction
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | DC <= 1kHz |
| Type | Mechanical OSL |
| Frequency | DC to 18GHz |
| Connector Type | 7mm |
| Number of Ports | NA |
