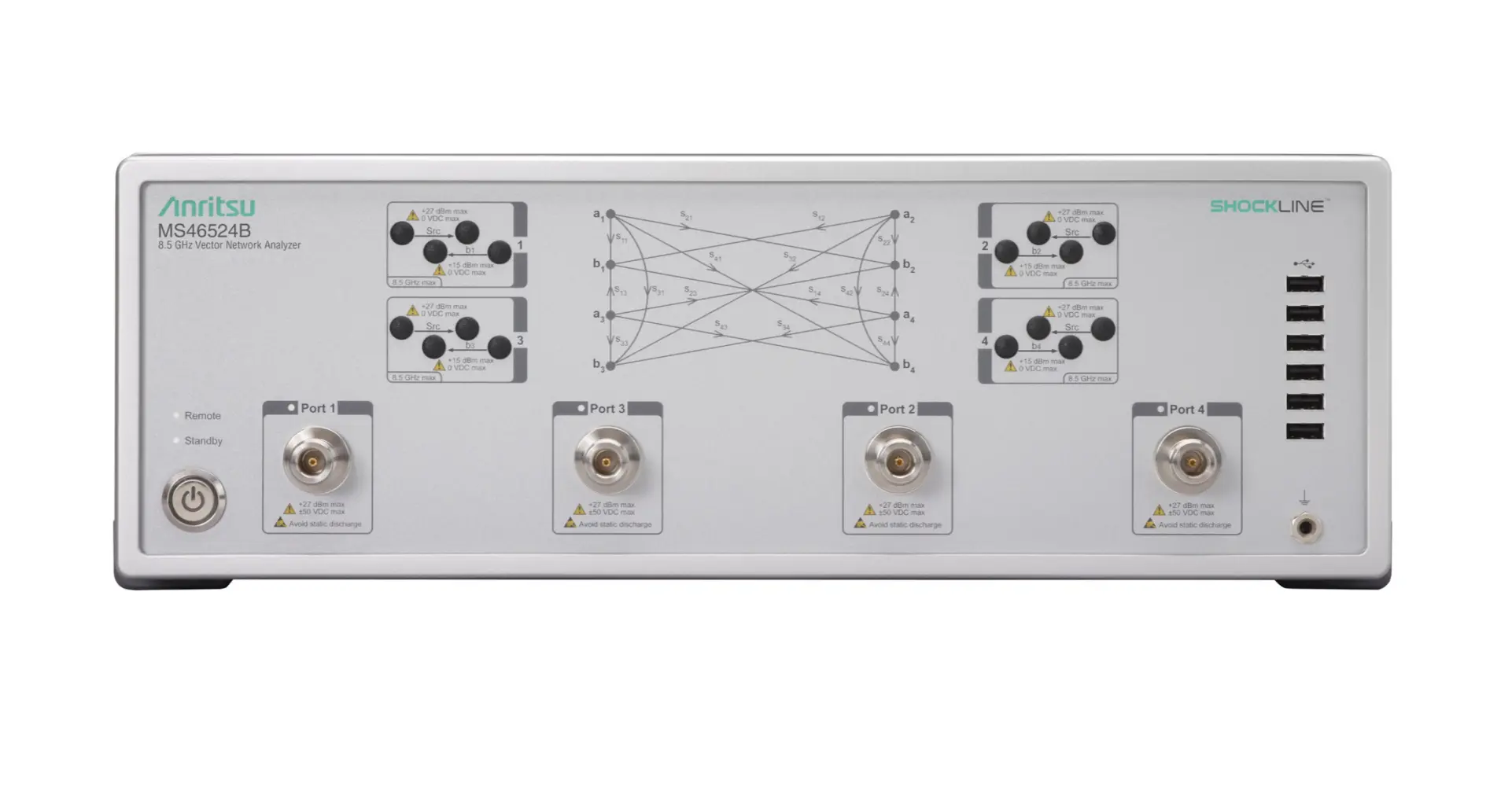

Anritsu MS46524B 4-Port Vector Network Analyzer
Request a quote
Anritsu MS46524B is a 4-port vector network analyzer with ShockLine technology, supporting performance up to 43.5 GHz for 5G, differential, and multiport testing.
Product details
| Model | MS46524B |
| Manufacturer | Anritsu |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu ShockLine MS46524B is a 4-port vector network analyzer delivering performance up to 43.5 GHz with unprecedented value in multiport VNA testing. It lowers the cost of test and speeds time-to-market for characterizing and manufacturing multiport mobile network devices and equipment for 5G applications, differential cables, high-speed data interconnects, and system integration components.
Key Features
- 4-port configuration for differential and mixed-mode testing
- Guaranteed performance to 43.5 GHz
- Real-time bandpass and lowpass time domain functionality
- TDR-like display with impedance over distance visualization
- File-based signal integrity tools for debugging multiport SI issues
- SmartCal auto calibration unit reduces setup time
- Bias tee option for DC power biasing on 8.5 GHz model
- Common GUI and SCPI interface across ShockLine family
Applications
- 5G network components and device characterization
- Differential cable testing
- Automotive RF and FAKRA connectors
- Mobile device antennas and switches
- Passive device testing including connectors, filters, and isolators
- Near-field and far-field antenna measurements
- Amplifier characterization
- Wireless power transfer applications
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Connector Type | Type N-Female (Plug) |
| Connector Type | Type K-Male (Jack) |
