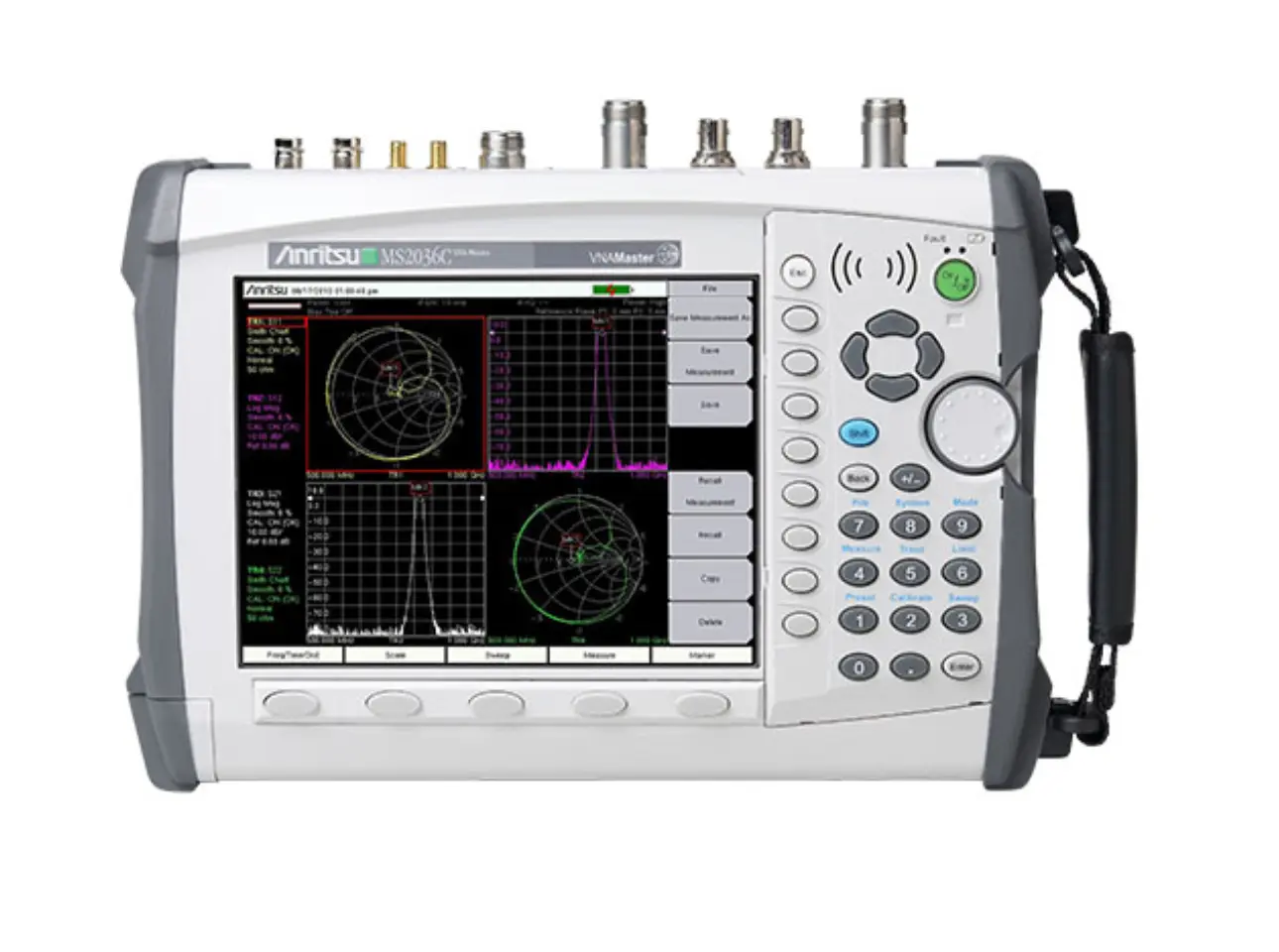

Anritsu MS2036C VNA Master

Overview

The Anritsu MS2036C is the industry's highest performance handheld solution for 2-port, 2-path measurements. It combines VNA capability (5 kHz to 6 GHz) with a high-performance spectrum analyzer (9 kHz to 9 GHz). The MS2036C features industry-first 12-term error correction algorithm with measurement speed of 350 µsec per point, making it ideal for tuning filters where multiple S-parameters interact during adjustment. The 3-receiver architecture enables measurement and display of all four S-parameters simultaneously with a single connection to the device under test.

Key Features

• 2-port, 2-path Vector Network Analyzer (5 kHz to 6 GHz)
• Spectrum Analyzer (9 kHz to 9 GHz) with 10 MHz resolution bandwidth
• Industry-first 12-term error correction algorithm
• 350 µsec per point measurement speed
• 3-receiver architecture for simultaneous measurement of all 4 S-parameters
• Burst Detect sweep mode for identification of signals as short as 200 µs
• Optional Time Domain analysis and Distance-To-Fault capability
• Optional Vector Voltmeter, Bias Tee, and high-accuracy power meter modes
• Optional GPS receiver with coverage mapping (Option 0431)
• Optional Interference Analyzer and Channel Scanner
• AM/FM/SSB demodulator with optional PM analysis
• PIM Hunting for external intermodulation products

Applications

• Aerospace and defense platform RF system commissioning and support
• Cable and antenna fault location and characterization
• Filter and multiplexer tuning in manufacturing
• Radome and dielectric material testing in the field
• Wireless network infrastructure maintenance and troubleshooting
• Spectrum monitoring and interference analysis
• Aircraft and shipboard wire bundle cable fault detection
