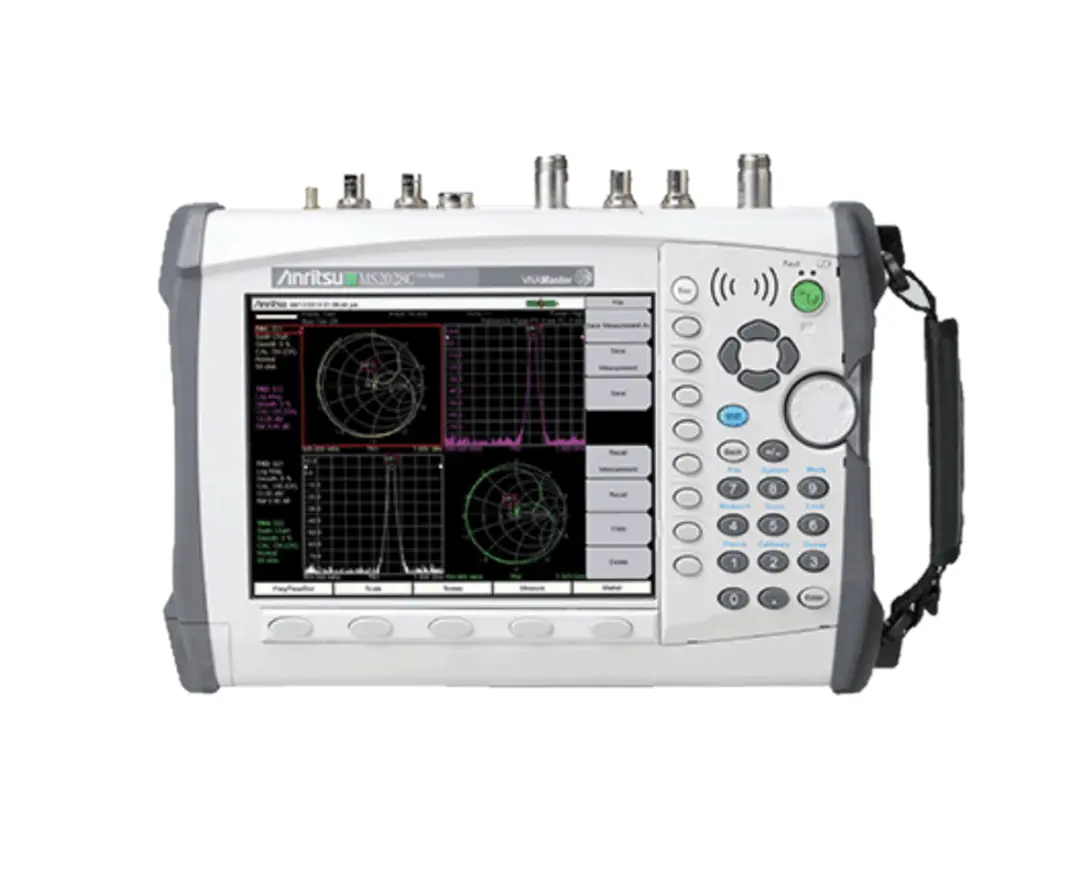

Anritsu MS2028C VNA Master Vector Network Analyzer
Request a quote
Anritsu MS2028C VNA Master is a handheld vector network analyzer covering 5 kHz to 20 GHz with true 2-port, 2-path measurements, 12-term error correction, and 350 µs sweep speed.
Product details
| Model | MS2028C |
| Manufacturer | Anritsu |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu VNA Master MS2028C is a handheld vector network analyzer covering 5 kHz to 20 GHz, specifically designed for field measurements of complex coaxial and waveguide systems. It provides true 2-port, 2-path fully-reversing measurements with advanced 12-term error correction, allowing all four S-parameters to be measured with a single DUT connection.
Key Features
- Frequency range: 5 kHz to 20 GHz
- Two-active-port, fully-reversing Vector Network Analyzer
- Measures all four S-parameters with a single connection to the device under test
- 350 µs per data point sweep speed, ideal for filter tuning applications
- 12-term error correction algorithm for accurate field measurements
- Distance Domain option for distance-to-fault measurements
- Time Domain option with Gated Time Domain, LP Processing, and Phasor Impulse mode
Applications
- Cable and antenna field measurements with true vector correction
- Filter tuning and optimization in field service environments
- Coaxial and waveguide system characterization
- Distance-to-fault diagnostics for complex transmission systems
- Time-domain analysis for impedance and pulse response characterization
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Connector Type | Type K-Female (Plug) |
| Form Factor | Handheld |
