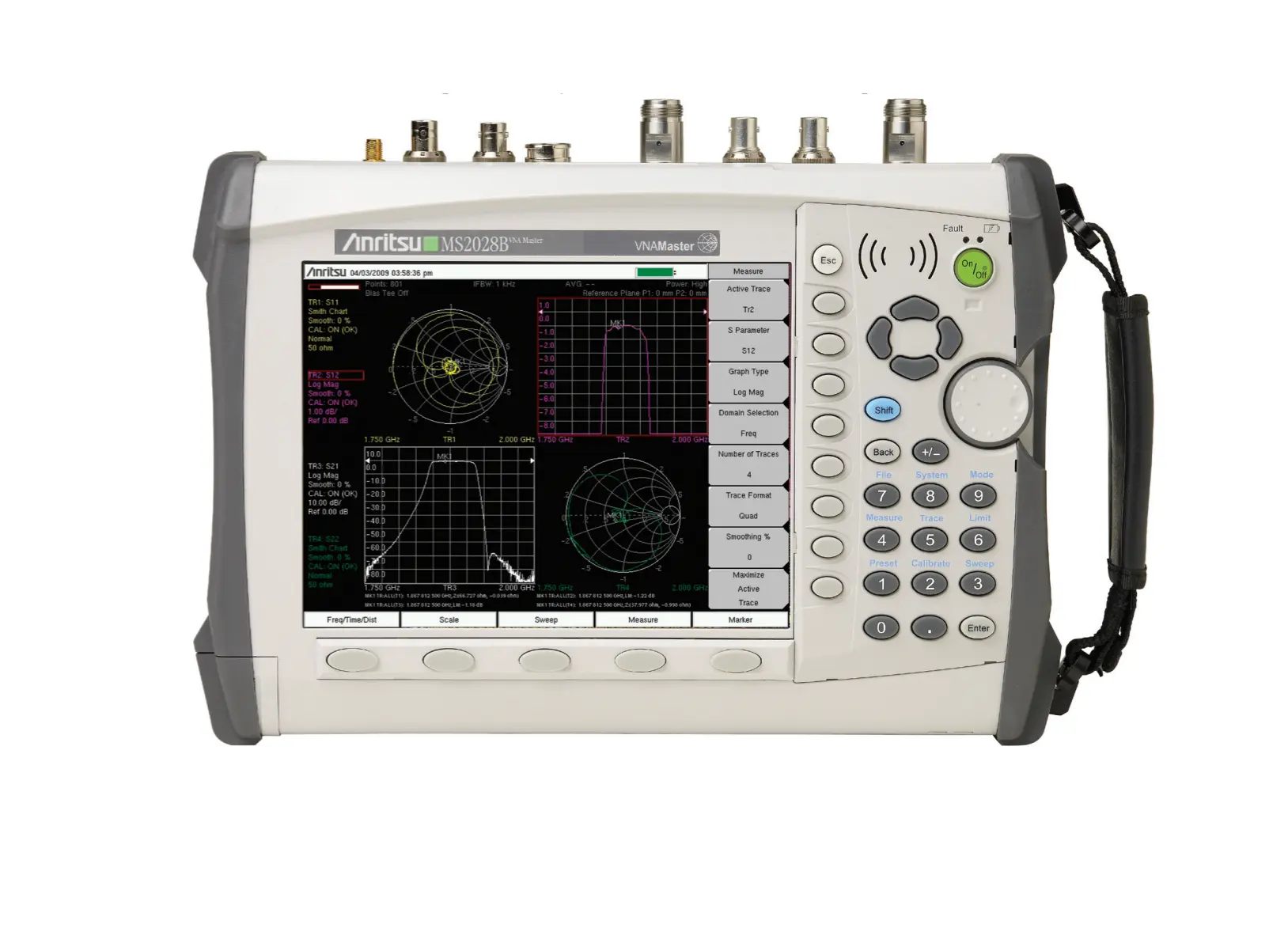

Anritsu MS2028B VNA Master Vector Network Analyzer
Request a quote
Anritsu MS2028B VNA Master is a 5 kHz to 20 GHz vector network analyzer with 12-term error correction, 750 µs sweep speed, and 3-receiver architecture for simultaneous S-parameter measurements.
Product details
| Model | MS2028B |
| Manufacturer | Anritsu |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu VNA Master MS2028B is a handheld vector network analyzer covering 5 kHz to 20 GHz, designed for field measurements of complex cable and antenna systems. It provides true 2-port vector-corrected measurements with advanced 12-term error correction algorithm, making it suitable for both coaxial and waveguide measurements in field environments.
Key Features
- Broadband coverage: 5 kHz to 6 GHz and up to 20 GHz
- True 2-port Vector Network Analyzer with 12-term error correction
- 3-receiver architecture for simultaneous measurement of all 4 S-parameters
- 750 µs/data point sweep speed, ideal for field tuning applications
- 65 dB dynamic range to 20 GHz
- IF Bandwidth selections from 10 Hz to 100 kHz
- Supports waveguide measurements
- High resolution daylight-viewable TFT color display
- Lightweight: 9.9 lbs (4.5 kg)
- Arbitrary data points up to 4001
- Store more than 4000 traces and setups in memory
- Optional Time Domain for Distance-to-Fault diagnostics
- Optional Internal Bias Tee, Vector Voltmeter, Power Meter, and GPS Receiver
Applications
- Cable and antenna measurements in field service environments
- Waveguide system characterization and troubleshooting
- Distance-to-fault diagnostics for cable bundles and transmission lines
- Filter tuning and RF component validation in field conditions
- Ethernet automation and remote testing via optional Ethernet connectivity
Specifications
| Connector Type | Type N-Female (Plug) |
| Low Frequency (range) | 20GHz <= 50GHz |
