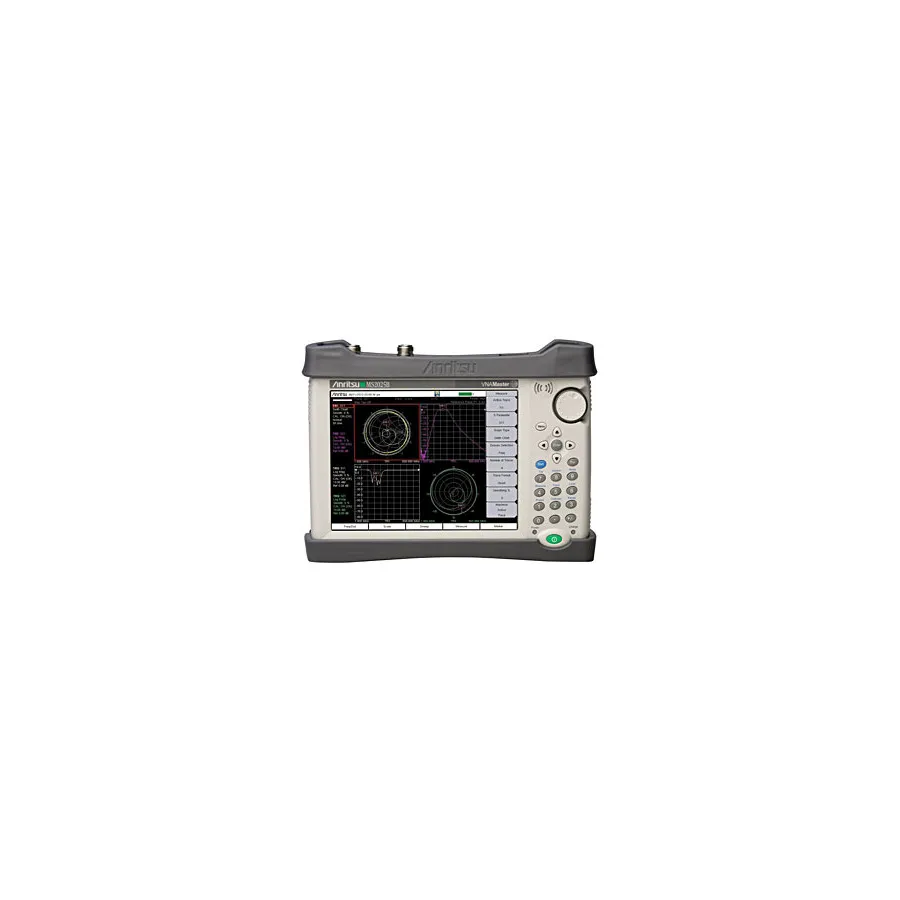

Anritsu MS2025B VNA Master Vector Network Analyzer
Request a quote
Anritsu MS2025B VNA Master is a 500 kHz to 6 GHz vector network analyzer with 100 dB dynamic range and integrated power meter and vector voltmeter capabilities.
Product details
| Model | MS2025B |
| Manufacturer | Anritsu |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu VNA Master MS2025B is a handheld vector network analyzer covering 500 kHz to 6 GHz, designed for field engineers and technicians supporting RF and microwave systems. It combines vector network analyzer, power meter, and vector voltmeter functions in one portable instrument, providing error-corrected measurements for accurate field diagnostics.
Key Features
- Frequency range: 500 kHz to 6 GHz
- 100 dB transmission dynamic range
- Intuitive graphical user interface with touch screen
- Outstanding calibration stability and exceptional RF immunity
- IF Bandwidth selections from 10 Hz to 100 kHz
- Data point sweep speed: 850 µs
- Error-corrected VNA technology for field S-parameter measurements
- Optional Internal Bias Tee
- Optional Vector Voltmeter for cable phase matching
- User-defined parameter overlays for viewing multiple S-parameters
Applications
- Field diagnostics for aerospace and defense communication systems
- Installation and maintenance of aircraft and shipboard antennas and cables
- Fault location in complex cable bundles and transmission systems
- Performance verification of RF components and interconnects
Specifications
| Number of Ports | 2 |
| Maximum Frequency | 6 GHz |
| Minimum Frequency | 500 kHz |
| Type | Handheld |
| Dynamic Range | 100 dB |
| Series | VNA Master Series |
| Input Impedance | 50/75 Ω |
| Interface | LAN |
