Anritsu MN4697C 4-Port Multiport Test Set for Vector Network Analyzers, covering 70 kHz to 70 GHz with V connectors.
Product details
| Model | MN4697C |
| Manufacturer | Anritsu |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview

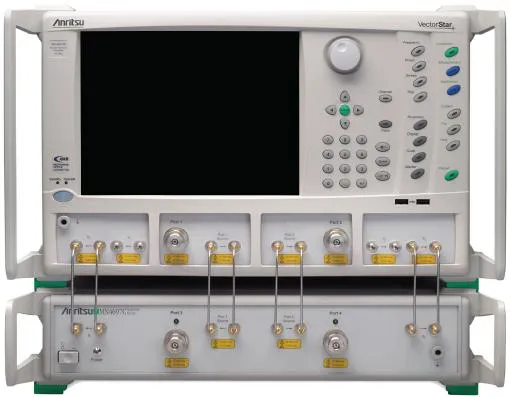

The Anritsu MN4697C is a 4-port multiport test set designed to expand Anritsu VectorStar Vector Network Analyzers to multiple test port capabilities. It features universal test port connectors (V connectors) and is compatible with MS4645A/B (up to 50 GHz) and MS4647A/B (up to 70 GHz) analyzers.
Key Features
- 4 test ports with V (male) connectors
- Frequency range: 70 kHz to 50 GHz (MS4645A/B) or 70 GHz (MS4647A/B)
- Easily exchangeable universal test port connectors for damage protection
- Maximum damage input levels: +20 dBm, 40 VDC
- Interconnects to VNA source and high band reference outputs
Applications
- Multi-port device characterization and testing
- High-frequency RF and microwave circuit measurements
- Component validation and verification
Included Accessories
- Interface cables to base VNA (6 each)
- GPIB cable to base VNA
- Power cord
- Installation instructions
Specifications
| High Frequency (range) | 50GHz <= 85GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
