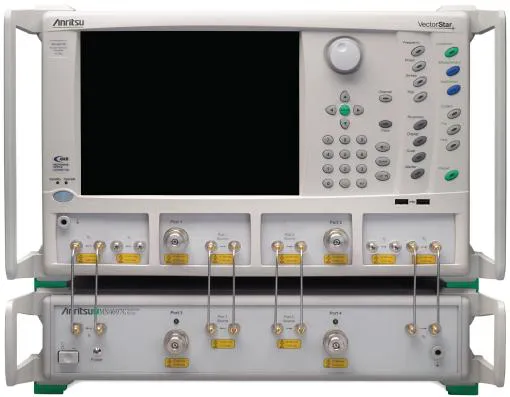

Anritsu MN4694C 4-Port Test Set
Request a quote
Anritsu MN4694C 4-Port Multiport Test Set for Vector Network Analyzers, covering 70 kHz to 40 GHz with K connectors.
Product details
| Model | MN4694C |
| Manufacturer | Anritsu |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu MN4694C is a 4-port multiport test set designed to expand the capabilities of Anritsu VectorStar MS464xB/MS464xA Series Vector Network Analyzers. It contains a switch matrix and controller that enables multiple test port connections to devices under test, controlled via IEEE-488 GPIB interface.
Key Features
- 4 test ports with K connectors (2.92 mm)
- Frequency range: 70 kHz to 20 GHz (MS4642A/B) or 40 GHz (MS4644A/B)
- Switch matrix for multiple test port connections
- IEEE-488 GPIB control interface
- Minimal loss contribution to source and test paths
Applications
- Multi-port device characterization and testing
- Complex RF and microwave circuit measurements
- Component validation and verification
Included Accessories
- Interface cables to base VNA (6 each)
- GPIB cable to base VNA
- Power cord
- Installation instructions
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
