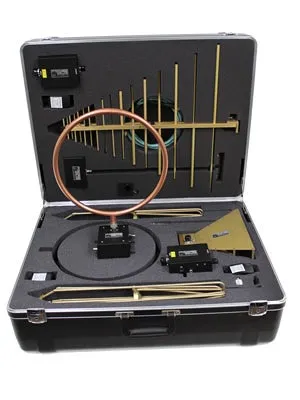

AH Systems AK-285R Antenna Kit
Request a quote
AK-285R is a portable antenna kit for shielding effectiveness testing, covering 1 kHz to 18 GHz with individually calibrated receive antennas and field accessories.
Product details
| Model | AK-285R |
| Manufacturer | AH Systems |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The AH Systems AK-285R is a portable antenna kit for shielding effectiveness and electromagnetic testing. It includes carefully calibrated receive antennas and support equipment for testing from 1 kHz to 18 GHz. Each component is housed in a dedicated compartment to prevent loss or damage.
Key Features
- Frequency coverage from 1 kHz to 18 GHz
- Receive-only antenna configuration optimized for shielding effectiveness
- Individually calibrated antennas for accurate measurements
- Rugged construction and field-portable design
- Three year warranty
Applications
- Shielding effectiveness testing
- EMI/EMC compliance testing
- Equipment qualification and verification
- Portable field measurements
Included Accessories
- SAS-550-1B Active Monopole Antenna (9 kHz - 60 MHz)
- SAS-563B Active Loop Antenna (1 kHz - 60 MHz)
- SAS-544F Biconical Antenna (20 MHz - 300 MHz)
- SAS-510-2 Log Periodic Antenna (290 MHz - 2000 MHz)
- SAS-571 Double Ridge Guide Horn Antenna (700 MHz - 18 GHz)
- SAC-18G-3 3 Meter Low Loss Cable (N/N connectors)
- ADP-202 Adapter (N(f) to BNC(m))
- ATU-510 Wood Tripod with AEH-510 Azimuth and Elevation Head
- TSC-285RT Transit Storage Case
- TCC-510 Tripod Carrying Case
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
